Specifications
| HP | 14 |
|---|
| Displacement | 408cc |
|---|
| No. of Cylinders | 1 |
|---|
| Fuel Type | Unleaded |
|---|
| Engine Configuration | Horizontal |
|---|
| Bore (in) | 3.46 |
|---|
| Stroke (in) | 2.64 |
|---|
| Weight (lbs) | 78 |
|---|
| Lubrication System | Splash Lubrication |
|---|
| Ignition System | CDI Ignition |
|---|
| Fuel Tank Capacity (L) | 5.74 |
|---|
| Compression Ratio | 8.3:1 |
|---|
| Warranty** | 3 Year Limited |
|---|
| Width (in) | 17.9 |
|---|
| Length (in) | 14.3 |
|---|
| Height (in) | 18.1 |
|---|

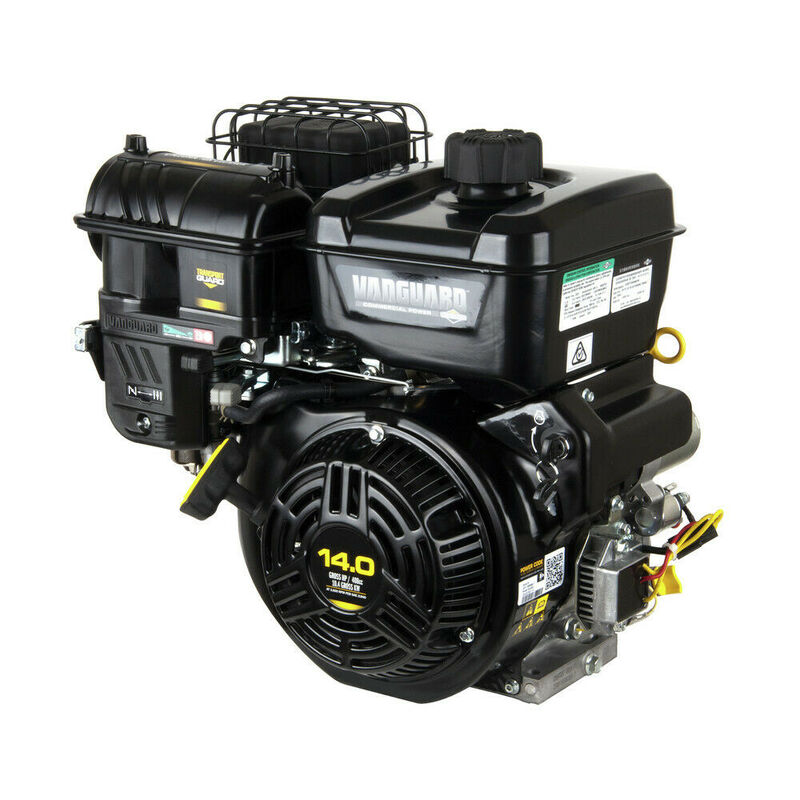

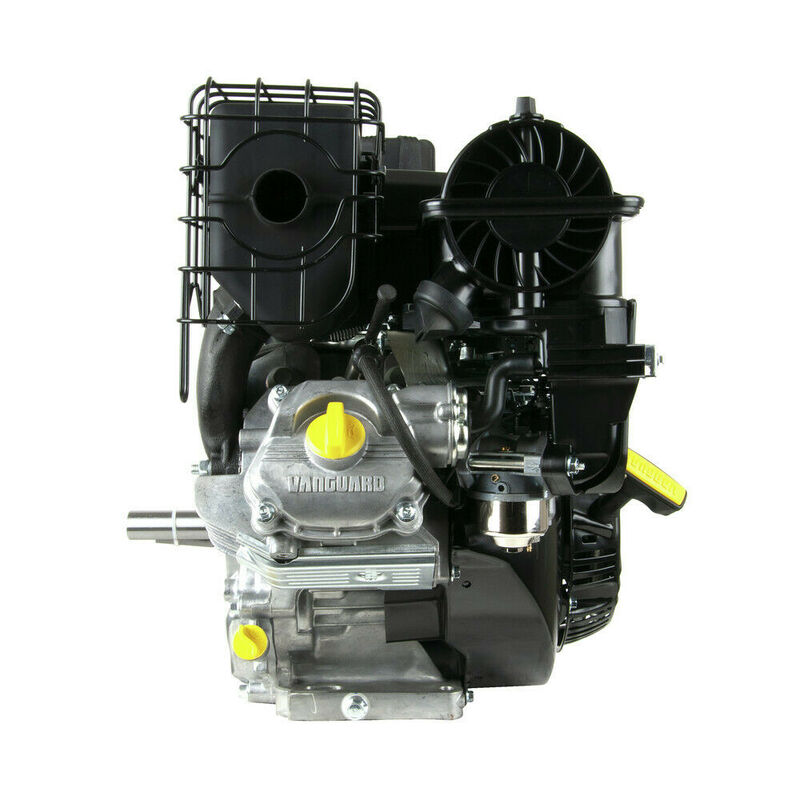

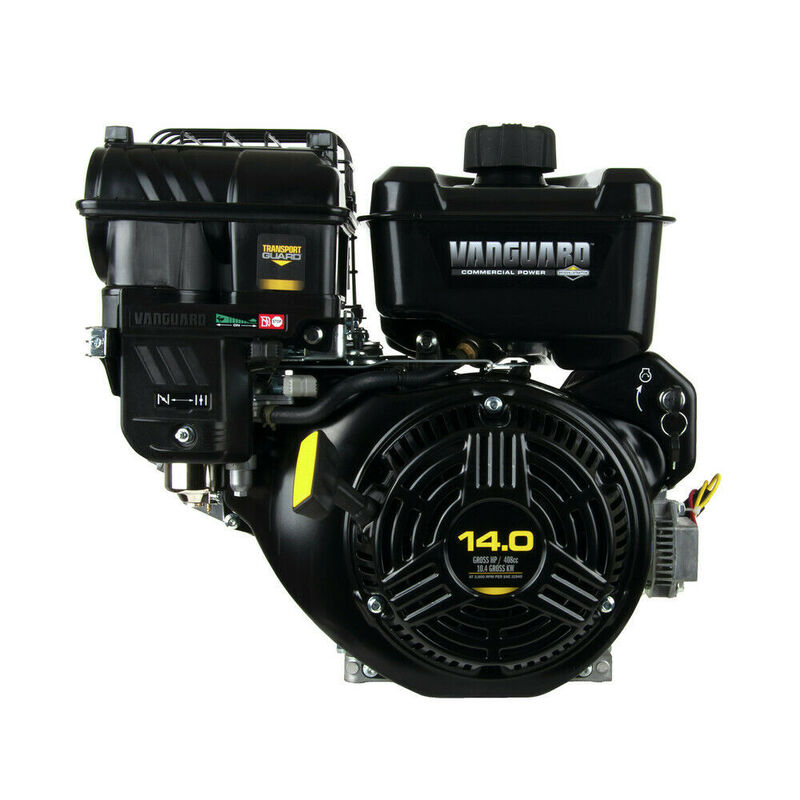

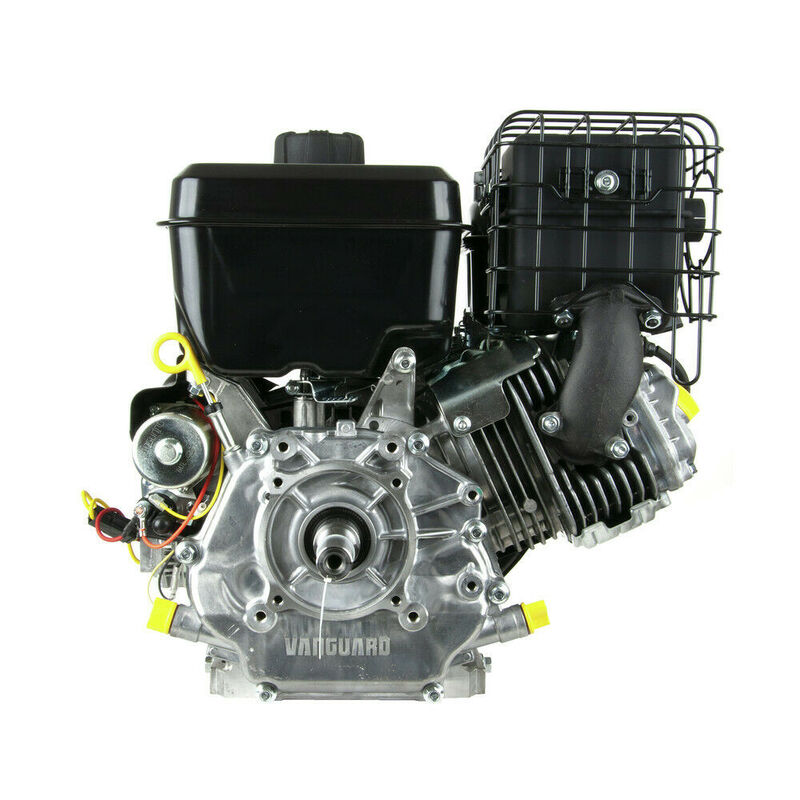

This 14hp Vanguard engine is premium power at a great price.
The Vanguard range of engines screams reliability and durability, designed for demanding conditions and high performance. These engines are commonly found on farms and worksites running machines such as augers, aerators, pumps, generators and more.
The electric start feature makes it super easy to operate and the unit features a number of Vanguard features that make this machine so reliable.
- Mechanical Compression Release - smooth starting with an instant return to max power, reducing lag.
- Dual Ball Bearing
- Large Volume muffler that helps to reduce the noise produced by the engine by up to 50%.
- Cyclonic Air Cleaner - provides maximum protection for the engine at all times.
- Low Oil Level Shutdown - if the engine oil is running low then the unit will automatically shut off the spark to prevent any further damage to the machine.
- Commercial-style Carburetor - Carburetor optimized to ensure reliable starting and smooth running operation over a wide range of loads.
- Nano Media Air Cleaner Filter Element with Autoshed Technology - Proprietary self-cleaning filter media specially engineered to work with the Vanguard 400 engine.
