Specifications

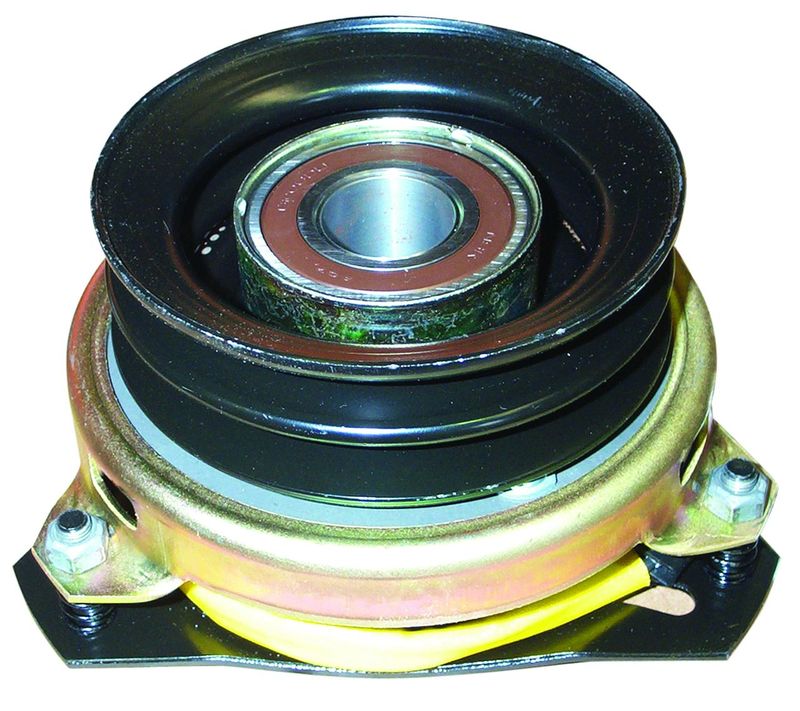

| Description: | Electric PTO Clutch Assembly |
|---|
| Replaces OEM: | Ariens: 30908, 03090800 |
|---|
| Cub Cadet: WDC38410 |
|---|
| Grasshopper: 604185, 388766 |
|---|
| Toro: 93-3160 |
|---|
| Warner: 5215-62 |
|---|
| Inside Diameter: (inches) | 1 1/8 |
|---|
| Inside Diameter: (mm) | 28 |
|---|
| Height: (inches) | 3 3/4 |
|---|
| Height: (mm) | 95 |
|---|
| Pulley Diameter : (inches) | 5 |
|---|
| Pulley Diameter : (mm) | 127 |
|---|
| Fits: | Selected Ariens, Cub Cadet, Grasshopper and Toro Ride-ons running A series belts. |
|---|
| Features: | Uses 1/2" v-belt ("A" or 68 Series Belt). Operates in a clockwise direction. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
|---|
| Over the counter sales of clutches as spare parts should be discouraged. |
|---|
| WHY? - The main causes of failures to electric clutches are due to faults with the |
|---|
| battery and/or charging circuits not providing the correct current to operate the |
|---|
| clutch adequately leading to premature failure. Electric PTO clutches are a |
|---|
| specialist component that should only be fitted by a servicing dealer with the |
|---|
| correct equipment to test both the charging circuits and battery condition. It is |
|---|
| therefore the responsibility of the servicing dealer to test these items prior to |
|---|
| installing a new clutch. Failure to do so will void warranty. Warranty covers |
|---|
| normal use and does not cover damage or defect which results from alteration, |
|---|
| accident, neglect, or improper clutch selection, installation, operation, or |
|---|
| maintenance. Warranty covers faulty manufacture and/or workmanship. |
|---|
| GA Spares stocks electric clutches manufactured by an OEM supplier. |
|---|
| Brand: | Ariens - Non Genuine, Cub Cadet - Non Genuine, Grasshopper - Non Genuine, Toro - Non Genuine, Warner |
|---|
| Product Line: | Clutch, electric, pulley |
|---|
Electric Pto Clutch Assembly 1-1/8" Id X 5" Pulley
