Aftermarket

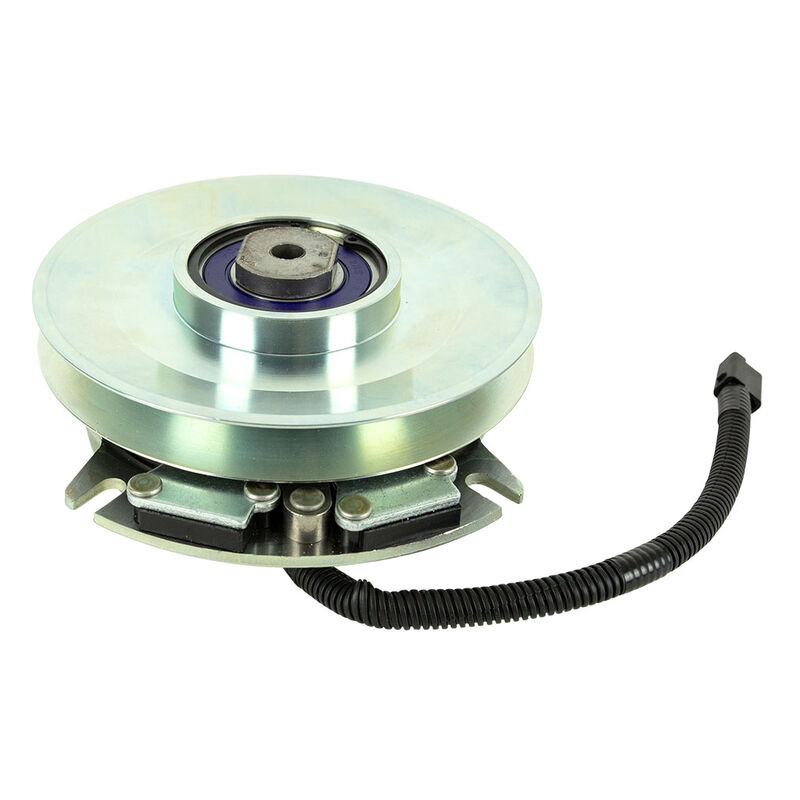

ELECTRIC PTO CLUTCH 1" ID X 7.20" PULLEY

Electric Pto Clutch 1" Id X 7.20" Pulley

Specifications
Description:Non-Genuine TORO Z Master, Warner Electric PTO Clutch Assembly
Replaces OEM:TORO 1-653048, 1-653292, 103-0690, 109-2916, 109-9276, E653048, E653292,
Warner 5218-201,
Inside Diameter: (inches)1"
Inside Diameter: (mm)25.4 mm
Pulley Diameter : (inches)7.20"
Pulley Diameter : (mm)182.88 mm
Fits:48" (1220 mm) cut TORO selected models including but not limited to Z Master Z450
(model 74417 year 2008), Z453 (model 74417 years 2005 to 2007, 74417CP years 2007
to 2008) zero turn radius (ZTR) ride-on models.
Fits:52" (1320 mm) cut TORO selected models including but not limited to Z Master Z450
(model 74416 years 2007 to 2008), Z453 (model 74416CP years 2007 to 2008) zero turn
radius (ZTR) ride-on models
Features:200 ft. lbs. torque.
Cool Coil Technology.
Counter-clockwise rotation.
Precision machined pulley.
Replaceable pulley bearing.
Suitable for 1/2" or 5/8" belts.
Three layer integrated water tight wire harness.
Standard Pack Quantity:1
Please Note:Electric PTO Clutches are a specialist component that should only be fitted by a
servicing dealer with the correct equipment to test both the charging circuits and
battery condition, over the counter sales of clutches as spare parts should be
discouraged. WHY? - The main causes of failures to electric clutches are due to
faults with the battery and or charging circuits not providing the correct current
to operate the clutch adequately leading to premature failure. It is therefore the
responsibility of the servicing dealer to test these items prior to installing a
new clutch, failure to do so will void warranty. Warranty covers normal use and
does not cover damage or defect which results from alteration, accident, neglect,
or improper clutch selection, installation, operation, or maintenance. Warranty
covers faulty manufacture and or workmanship.
Brand:TORO Non-Genuine, Warner Non-Genuine,
Product Line:Assembly - Electric Clutch, Clutch - Electric, Electric PTO Clutch Assembly,
Electric Pto Clutch 1" Id X 7.20" Pulley
$579.36
PayPal Logo
Afterpay Logo
SKU CLL8480
MPN 1320, Z450
Brand GA Spares
AvailabilityAvailable
