Specifications
| Description: | Non-Genuine TORO TITAN, Z Master, Transmission Nylon Flat Idler Pulley |
|---|
| Replaces OEM: | 109-3397 |
|---|
| Deck (cm) | 122 cm, 132.1 cm, 137.2 cm, 152.4 cm |
|---|
| Deck (inches) | 48", 52", 54", 60" |
|---|
| Deck (mm) | 1220 mm, 1320 mm, 1370 mm, 1524 mm |
|---|
| Height: (inches) | 1 1/16" |
|---|
| Height: (mm) | 26.98 mm |
|---|
| Inside Diameter: (inches) | 3/8" |
|---|
| Inside Diameter: (mm) | 9.52 mm |
|---|
| Outside Diameter: (inches) | 4 9/64" |
|---|
| Outside Diameter: (mm) | 105.17 mm |
|---|
| Pulley Dimension A: (inches) | 4 9/64" |
|---|
| Pulley Dimension A: (mm) | 105.17 mm |
|---|
| Pulley Dimension B: (inches) | 3 1/2" |
|---|
| Pulley Dimension B: (mm) | 88.9 mm |
|---|
| Pulley Dimension C: (inches) | 3/8" |
|---|
| Pulley Dimension C: (mm) | 9.52 mm |
|---|
| Pulley Dimension D: (inches) | 3/4" |
|---|
| Pulley Dimension D: (mm) | 19.05 mm |
|---|
| Pulley Dimension T: (inches) | .106" |
|---|
| Pulley Dimension T: (mm) | 2.69 mm |
|---|
| Fits: | 48" (1220 mm) cut TORO TITAN MX 4880 (MX4880 model 74871 [2] year 2013), Z 4800 |
|---|
| (Z4800 models 74812 [2] year 2007 and 74813 [2] year 2008), ZX 4800 (ZX4800 models |
|---|
| 74861 [2] years 2015 to 2016 and 74912 [2] year 2010) ZX 4820 (ZX4820 model 74920 |
|---|
| [2] years 2011 to 2013), Z Master (Commercial 2000 Series model 74141 [1] years |
|---|
| 2015 to 2016) zero turn radius (ZTR) ride-on models. Please Note: The brackets |
|---|
| after model numbers indicate quantity required per unit [1] = 1 required per unit, |
|---|
| [2] = 2 required per unit. |
|---|
| Fits: | 52" (1320 mm) cut TORO TITAN Z 5200 (Z5200 models 74814 [2] year 2007 and 74815 [2] |
|---|
| year 2008), Z Master (Commercial 2000 Series model 74143 [1] years 2014 to 2016) |
|---|
| zero turn radius (ZTR) ride-on models. Please Note: The brackets after model |
|---|
| numbers indicate quantity required per unit [1] = 1 required per unit, [2] = 2 |
|---|
| required per unit. |
|---|
| Fits: | 54" (1370 mm) cut TORO TITAN MX 5400 (MX5400 models 74872 year 2013 and 74892 years |
|---|
| 2015 to 2016), ZX 5400 (ZX5400 model 74914 years 2009 to 2010), ZX 5420 (ZX5420 |
|---|
| model 74924 years 2011 to 2013) zero turn radius (ZTR) ride-on models (2 required |
|---|
| per unit). |
|---|
| Fits: | 60" (1524 mm) cut TORO TITAN MX 6080 (MX6080 model 74873 years 2012 to 2013), ZX |
|---|
| 6020 (ZX6020 model 74843 years 2011 to 2013), ZX 6050 (ZX6050 model 74824 years |
|---|
| 2009 to 2010) zero turn radius (ZTR) ride-on models (2 required per unit). |
|---|
| Features: | Glass filled nylon. |
|---|
| Quality double sealed roller bearing. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | The brackets after model numbers indicate quantity required per unit [1] = 1 |
|---|
| required per unit, [2] = 2 required per unit. |
|---|
| Brand: | TORO, |
|---|
| Product Line: | Flat Idler Pulley, Hydro Idler Pulley, Idler Pulley - Flat, Pulley - Flat Idler, |
|---|
| Transmission Idler Pulley, |
|---|

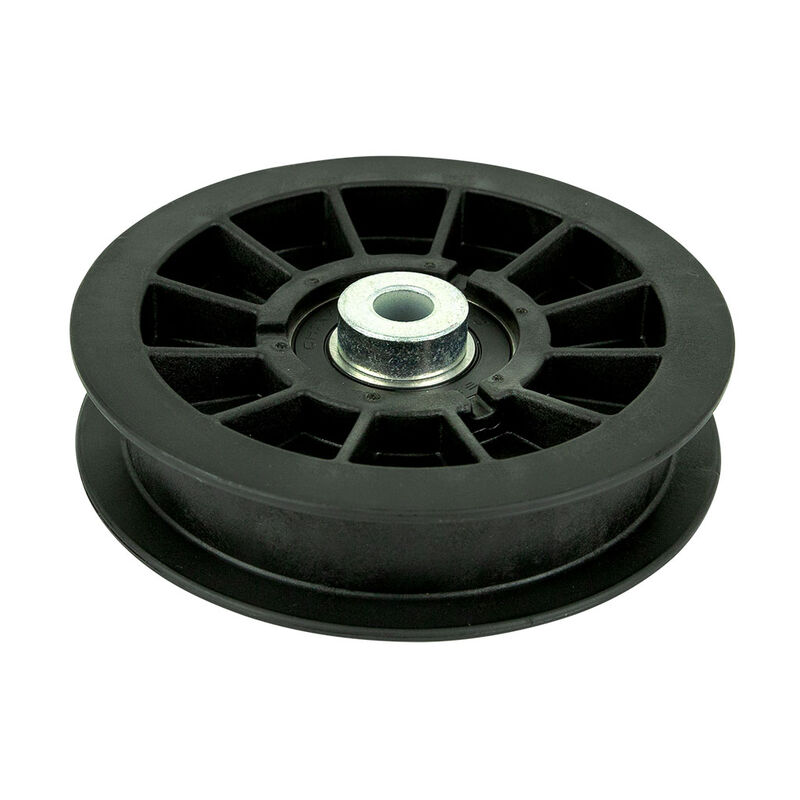

Toro Transmission Flat Idler Pulley Suits Titan / Z Master
