Specifications
| Description: | MoJack EX Max Ride-On and ZTR Lift - Model 45001 |
|---|
| Editorial: | The MoJack EZ MAX mower lift features a unique clutch system for easy lifting and |
|---|
| an automatic safety system with smooth release handle. The clutch system provides |
|---|
| the right amount of torque when lifting light or heavy-duty ride-on lawn mowers and |
|---|
| ZTR's. Use in conjunction with our MoJack workbench attachment part number TOL7424 |
|---|
| (sold separately), which attaches to the MoJack EZ Max and makes it great for work |
|---|
| on push mowers and other small projects. |
|---|
| Features: | Lifting Capacity: 450 lbs (204.11 kg) [lifting the front of the mower, not the |
|---|
| total mower weight]. |
|---|
| Raises up to: 24″ (609.5 mm). |
|---|
| Fits most residential tractor and ZTR mowers. |
|---|
| Wheel span measurement: 18.5″ (469.9 mm) to 47.5″ (1130.3 mm) inside to outside |
|---|
| front wheel measurements. |
|---|
| Easily lift manually or with a powered drill. |
|---|
| Folds flat for easy storage. |
|---|
| Replaces OEM: | MoJack 45001 |
|---|
| Height: (inches) | 45" |
|---|
| Height: (mm) | 1143 mm |
|---|
| Length: (in): | 38″ |
|---|
| Length: (mm): | 965.2 mm |
|---|
| Width: (inches) | 48" |
|---|
| Width: (mm) | 1219.2 mm |
|---|
| Carton Size: (inches) | L 44″ x W 16″ x H 7″ |
|---|
| Carton Size: (mm) | L 1117.6 mm x W 406.4 mm x H 177.8 mm |
|---|
| Weight: | 68 lbs (30.84 kg) |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | Lifting capacity of 450 lbs (204.11 kg) lifting front end only, not total weight of |
|---|
| mower. Use with our Mojack workbench attachment part number TOL7424. |
|---|
| Brand: | MoJack, |
|---|
| Product Line: | Hoist, Lift , Jack, Mower lift, ZTR Lift, |
|---|

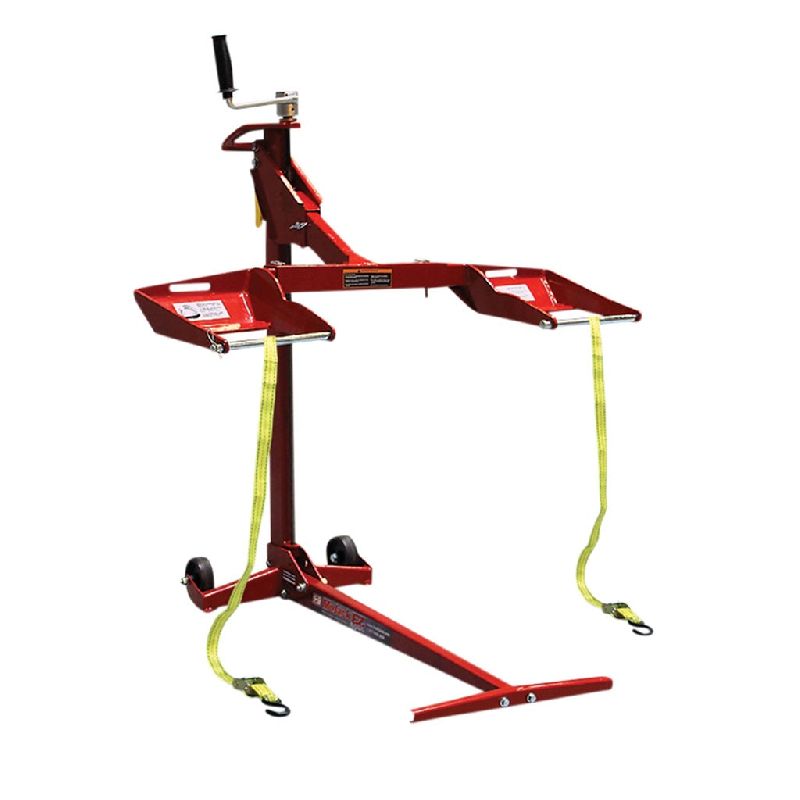

Mojack Ez Max Ride On Mower Lift
