Specifications

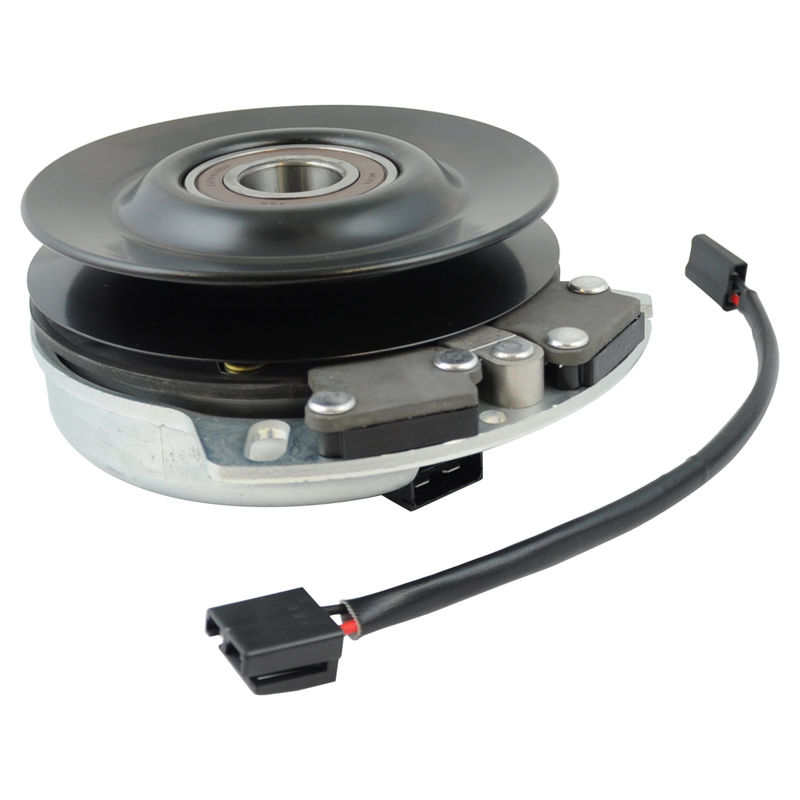

| Description: | Cub Cadet Electric PTO Clutch. |
|---|
| Replaces OEM: | Cub Cadet: 917-04180, 717-04180, 717-3403, 917-3403 |
|---|
| Warner: 5219-52, 5218-6 |
|---|
| Inside Diameter: (inches) | 1 1/8 |
|---|
| Inside Diameter: (mm) | 28 |
|---|
| Pulley Diameter : (inches) | 6 |
|---|
| Pulley Diameter : (mm) | 152 |
|---|
| Fits: | 44" cut Cub Cadet 2186 (13A-288L603, 2000) fitted with a Kohler 18 hp engine - hydro models. 44" cut Cub Cadet 2518 (13A-208L100, 2003) fitted with a Kohler 18 hp - hydro models. 44" and 48" cut Cub Cadet GT2186 (13A-298L710, 2004) fitted with a Kohler 20 hp - hydro models. 44" cut Cub Cadet GT2544 (13A-2D7L630, 2005) 20 hp models. 46" and 48" cut Cub Cadet 2185 (13A-288L603, 1997) fitted with a Kohler 18 hp - hydro models with s/n 359000 and lower. 48" cut Cub Cadet 2518 (13A-208M100, 2003) fitted with a K |
|---|
| ohler 18 hp - hydro models. 50" cut Cub Cadet GT2550 (13A-2C7P630, 2005) 21 hp models. |
|---|
| Features: | Specifications: |
|---|
| 125 Ft/lb Rating at 3000RPM |
|---|
| I.D: 1 1/8" (28 mm) |
|---|
| Pulley O.D: 6" (152 mm) |
|---|
| Height: 3" (76 mm) |
|---|
| Operates: Counter-clockwise direction |
|---|
| Uses: 5/8" belt ("B" or 69 series belt) |
|---|
| Made by an OEM supplier. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
|---|
| Over the counter sales of clutches as spare parts should be discouraged. |
|---|
| WHY? - The main causes of failures to electric clutches are due to faults with the |
|---|
| battery and/or charging circuits not providing the correct current to operate the |
|---|
| clutch adequately leading to premature failure. Electric PTO clutches are a |
|---|
| specialist component that should only be fitted by a servicing dealer with the |
|---|
| correct equipment to test both the charging circuits and battery condition. It is |
|---|
| therefore the responsibility of the servicing dealer to test these items prior to |
|---|
| installing a new clutch. Failure to do so will void warranty. Warranty covers |
|---|
| normal use and does not cover damage or defect which results from alteration, |
|---|
| accident, neglect, or improper clutch selection, installation, operation, or |
|---|
| maintenance. Warranty covers faulty manufacture and/or workmanship. |
|---|
| GA Spares stocks electric clutches manufactured by an OEM supplier. |
|---|
| Brand: | Cub Cadet - Non Genuine, Warner |
|---|
| Product Line: | Electric, clutch, |
|---|
Cub Cadet Electric Pto Clutch 1-1/8" Id X 6" Pulley
