Specifications

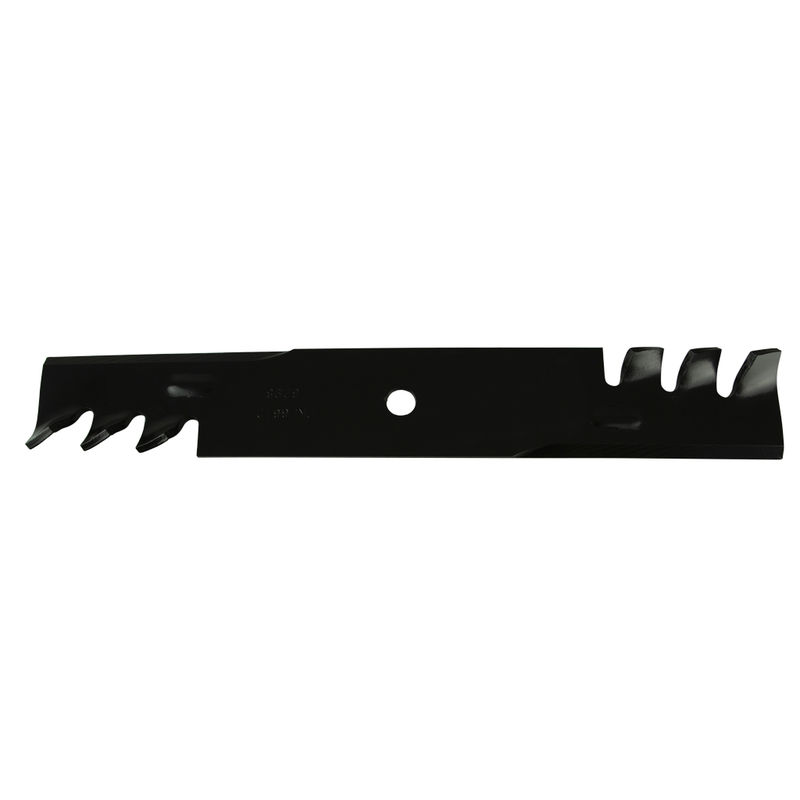

| Description: | Non-Genuine Dixon, GRAVELY, TORO 50" Cut Copperhead Mulcher Bar Blade |
|---|
| Replaces OEM: | Dixon 539 12 64-31, 9258, 9265 |
|---|
| GRAVELY 046998 |
|---|
| TORO 113579, 113579-09 |
|---|
| Centre Hole Diameter: (inches) | 5/8" |
|---|
| Centre Hole Diameter: (mm) | 15.875 mm |
|---|
| Length: (in) | 17" |
|---|
| Length: (mm) | 431.8 mm |
|---|
| Width: (inches) | 2 1/2" |
|---|
| Width: (mm) | 63.5 mm |
|---|
| Centre Hole Type: | Round |
|---|
| Fits: | 50” (1270 mm) cut Dixon 502, 503 early model zero turn radius ( ZTR) ride on |
|---|
| models. |
|---|
| Qty required per unit: | 3 blades required for 50" cut |
|---|
| Fits: | 50" (1270 mm) cut GRAVELY selected models. |
|---|
| Qty required per unit: | 3 blades required for 50" cut |
|---|
| Fits: | 50" (1270 mm) cut TORO side discharge dedicated deck (models 78445 and 78475 ser # |
|---|
| 3900001 and onwards year 1993) as fitted to Proline 700 Series machines. |
|---|
| Qty required per unit: | 3 blades required for 50" cut |
|---|
| Features: | Copperhead mulcher blade, flat and fluted, right hand cut. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | All blade bars are sold as singles, order the quantity required to make up a set. |
|---|
| Please Note: | Does not fit late model Dixons as the centre hole is different. This blade replaces |
|---|
| our Gator Mulcher blade part number BLR6773. |
|---|
| Brand: | Copperhead |
|---|
| Product Line: | Copperhead Mulcher Bar Blade, |
|---|
Dixon 17" Copperhead Mulcher Bar Blade 3 X 50" Cut Replaces Blr6773
