Specifications
| Description: | Replaces Genuine Kohler Air Filter & Pre-Filter Kit |
|---|
| Replaces OEM: | Kohler: 24 883 03-S1, 24 083 03-S1, 24 083 05-S |
|---|
| Height: (inches) | 2 29/32 |
|---|
| Height: (mm) | 74 |
|---|
| Inside Diameter: (inches) | 5 9/16 |
|---|
| Inside Diameter: (mm) | 141 |
|---|
| Outside Diameter: (inches) | 6 13/16 |
|---|
| Outside Diameter: (mm) | 173 |
|---|
| Fits: | Selected Kohler Command Pro Twin & Command Pro Twin EFI model including - Command Pro Twin 18hp to 30hp CH18, CH20, CH22, CH23, CH25, CH26, CH620, CH640, CH670, CH680, CH730, CH740, CH745, CH750, CV17, CV20, CV22, CV23, CV25, CV620, CV670, CV675, CV680, CV724, CV725, CV730, CV740 engine models. Command Pro Twin EFI 25hp to 29hp ECH730, ECH749 engine models. |
|---|
| Kit consists of: | Air filter and pre-filter |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | For non genuine air filter & pre-filter options use our AIR6772 air filter & AIR6775 pre-filter. |
|---|
| Product Line: | Air filter kit |
|---|

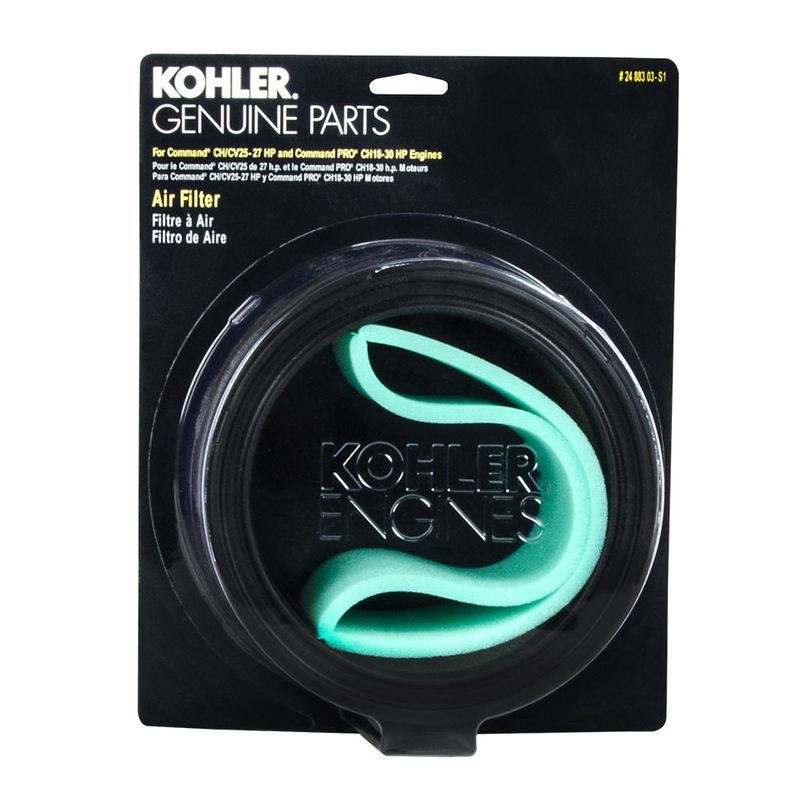

This is a genuine Kohler OEM air filter and integrated foam pre‑cleaner kit, part number 2488303S (also listed as 24 883 03‑S1). Designed to provide high-efficiency air filtration and extended engine life, the pre-cleaner traps large debris while the filter handles finer dust and particulates.
- Outer Diameter: 178 mm (7 inches)
- Inner Diameter: 140 mm (5.5 inches)
- Height: 74 mm (2.9 inches)
- Filter Type: Round panel filter with foam pre-cleaner
- Engine Compatibility: Twin-cylinder CH, CV, and EFI models
