Genuine
Walbro K6-wyta Spiral Diaphragm Upgrade Kit

Walbro K6-wyta Spiral Diaphragm Upgrade Kit

Specifications

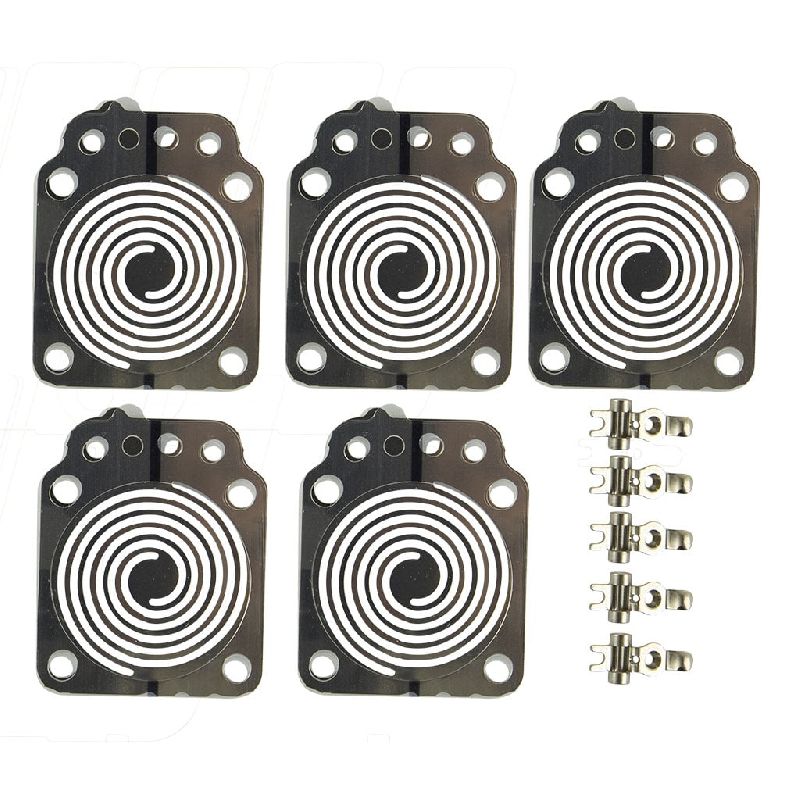

Description:Genuine Walbro K6-WYTA - 5-Pack Of K1-WYTA Spiral Metering Diaphragm Upgrade Kits -
Without Brass "W" Gauge
Editorial:Walbro's K1-WYTA patented spiral metering diaphragm upgrade kit in a 5-pack without
the brass "W" gauge. These repair kits allow you to convert your carburettor from
the traditional rubber metering diaphragm to Walbro's ethanol compliant spiral
metering diaphragm. The new spiral metering diaphragm is impervious to the effects
of Ethanol and additives in modern fuels and does not deteriorate with age.
Replaces OEM:Walbro K6-WYTA
Fits:This genuine Walbro K6-WYTA spiral metering diaphragm and gasket 5-pack upgrade kit
is suitable for use with selected Walbro carburettor models including but not
limited to WA-1, WA-2-1, WA-3, WA-4, WA-5-1, WA-6, WA-7-1, WA-8-1, WA-9-1, WA-10-1,
WA-11, WA-12-1, WA-13-1, WA-14-1, WA-15-1, WA-16, WA-17-1, WA-18-1, WA-19-1, WA-20,
WA-21-1, WA-22-1, WA-23-1, WA-24-1, WA-25-1, WA-26-1, WA-27-1, WA-28-1, WA-29-1,
WA-30-1, WA-31-1, WA-32-1, WA-33-1, WA-34-1, WA-35-1, WA-36-1, WA-37, WA-38-1,
WA-39-1, WA-40-1, WA-41-1, WA-42-1, WA-43-1, WA-44-1, WA-45-1, WA-46-1, WA-47-1,
WA-48, WA-49-1, WA-50-1, WA-51-1, WA-52-1, WA-53-1, WA-54-1, WA-55-1, WA-56-1,
WA-57, WA-58-1, WA-59-1, WA-60-1, WA-61-1, WA-62-1, WA-63-1, WA-64-1, WA-65-1,
WA-66-1, WA-67-1, WA-68-1, WA-69-1, WA-71-1, WA-72, WA-73-1, WA-74-1, WA-75-1,
WA-76-1, WA-77, WA-78-1, WA-79-1, WA-80-1, WA-81-1, WA-82-1, WA-83-1, WA-84-1,
WA-85-1, WA-86-1, WA-87-1, WA-88, WA-89-1, WA-90-1, WA-91-1, WA-92-1, WA-93-1,
WA-94-1, WA-95-1, WA-96-1, WA-97-1, WA-98-1, WA-99-1, WA-100-1, WA-101-1, WA-102-1,
WA-103-1, WA-104, WA-105, WA-106-1, WA-107-1, WA-108-1, WA-109, WA-110-1, WA-111,
WA-112-1, WA-113-1, WA-114-1, WA-115-1, WA-116-1, WA-117-1, WA-118-1, WA-119-1,
WA-120-1, WA-121-1, WA-122, WA-123-1, WA-124-1, WA-125-1, WA-126-1, WA-127-1,
WA-128, WA-129, WA-130-1, WA-131-1, WA-132-1, WA-133-1, WA-134-1, WA-226-1, WT-1-1,
WT-2-1, WT-3-1, WT-4-1, WT-5, WT-6-1, WT-8-1, WT-9-1, WT-10-1, WT-11-1, WT-12-1,
WT-13-1, WT-15, WT-16, WT-17-1, WT-18-1, WT-19-1, WT-20-1, WT-21-1, WT-22-1,
WT-24-1, WT-25-1, WT-26-1, WT-27, WT-29-1, WT-33-1, WT-34-1, WT-35-1, WT-37-1,
WT-38-1, WT-39-1, WT-41-1, WT-42-1, WT-43, WT-44-1, WT-45-1, WT-46-1, WT-47-1,
WT-48-1, WT-50-1, WT-51-1, WT-52-1, WT-54, WT-55-1, WT-56-1, WT-57-1, WT-58-1,
WT-59-1, WT-61-1, WT-63-1, WT-64-1, WT-65-1, WT-66-1, WT-67-1, WT-68-1, WT-70-1,
WT-72-1, WT-73-1, WT-74-1, WT-75, WT-77-1, WT-79-1, WT-82-1, WT-83-1, WT-84-1,
WT-85-1, WT-86-1, WT-87-1, WT-88-1, WT-89-1, WT-90-1, WT-91-1, WT-92-1, WT-93-1,
WT-94-1, WT-95, WT-96-1, WT-97-1, WT-98-1, WT-99-1, WT-100-1, WT-101-1, WT-102-1,
WT-103-1, WT-104-1, WT-105-1, WT-106-1, WT-108-1, WT-109-1, WT-110-1, WT-111-1,
WT-112-1, WT-113-1, WT-115-1, WT-118-1, WT-119-1, WT-120-1, WT-120, WT-121,
WT-123-1, WT-124-1, WT-127-1, WT-130-1, WT-131-1, WT-132-1, WT-133-1, WT-134-1,
WT-135, WT-137, WT-138-1, WT-141-1, WT-142-1, WT-143-1, WT-144-1, WT-146-1,
WT-148-1, WT-149-1, WT-150-1, WT-151-1, WT-152-1, WT-153-1, WT-154, WT-155,
WT-156-1, WT-157-1, WT-158-1, WT-159-1, WT-160-1, WT-161-1, WT-162-1, WT-163-1,
WT-164-1, WT-166-1, WT-167-1, WT-168-1, WT-170-1, WT-174-1, WT-175-1, WT-176-1,
WT-177-1, WT-178-1, WT-182-1, WT-183-1, WT-185-1, WT-190-1, WT-194-1, WT-195A,
WT-196-1, WT-198-1, WT-201-1, WT-202-1, WT-205-1, WT-207-1, WT-209-1, WT-210-1,
WT-211-1, WT-213-1, WT-214-1, WT-215-1, WT-216-1, WT-217-1, WT-218-1, WT-219-1,
WT-221-1, WT-223-1, WT-224-1, WT-225-1, WT-226-1, WT-229-1, WT-230-1, WT-231-1,
WT-232-1, WT-233-1, WT-234-1, WT-235-1, WT-237-1, WT-238-1, WT-241-1, WT-242-1,
WT-245-1, WT-246-1, WT-249-1, WT-250-1, WT-251-1, WT-257-1, WT-258-1, WT-260-1,
WT-263-1, WT-266-1, WT-267-1, WT-272-1, WT-273-1, WT-274-1, WT-275-1, WT-276-1,
WT-277-1, WT-279-1, WT-281-1, WT-282-1, WT-284-1, WT-286-1, WT-287-1, WT-288-1,
WT-289-1, WT-290-1, WT-291-1, WT-294-1, WT-295-1, WT-297-1, WT-298-1, WT-300-1,
WT-301-1, WT-302-1, WT-303-1, WT-305-1, WT-308-1, WT-309-1, WT-310-1, WT-311-1,
WT-312-1, WT-315-1, WT-316, WT-322-1, WT-324-1, WT-327-1, WT-331-1, WT-332-1,
WT-333-1, WT-337-1, WT-338-1, WT-339-1, WT-340-1, WT-341-1, WT-344-1, WT-345-1,
WT-346-1, WT-347-1, WT-348-1, WT-349-1, WT-350-1, WT-354-1, WT-361-1, WT-363-1,
WT-365-1, WT-366-1, WT-367-1, WT-368-1, WT-370-1, WT-372-1, WT-373-1, WT-378-1,
WT-380-1, WT-383-1, WT-385-1, WT-387-1, WT-390-1, WT-391-1, WT-394, WT-395,
WT-398-1, WT-399-1, WT-400-1, WT-402-1, WT-405-1, WT-406-1, WT-408-1, WT-408-1,
WT-410-1, WT-411, WT-414-1, WT-415-1, WT-416-1, WT-417-1, WT-418-1, WT-421-1,
WT-424-1, WT-426-1, WT-427-1, WT-428-1, WT-429-1, WT-430-1, WT-433-1, WT-434-1,
WT-435, WT-436-1, WT-437-1, WT-438-1, WT-439-1, WT-441-1, WT-442-1, WT-446-1,
WT-450-1, WT-451-1, WT-453-1, WT-454-1, WT-455-1, WT-456-1, WT-457-1, WT-458-1,
WT-460-1, WT-462-1, WT-463-1, WT-465-1, WT-466-1, WT-467-1, WT-470-1, WT-472-1,
WT-475-1, WT-477-1, WT-481-1, WT-483, WT-484-1, WT-486-1, WT-487-1, WT-489-1,
WT-492-1, WT-494-1, WT-495-1, WT-497-1, WT-499-1, WT-500-1, WT-501-1, WT-504-1,
WT-506-1, WT-508-1, WT-509-1, WT-511-1, WT-512-1, WT-513-1, WT-514-1, WT-516-1,
WT-517-1, WT-518-1, WT-520-1, WT-525-1, WT-525-1, WT-527-1, WT-529-1, WT-530-1,
WT-531-1, WT-534-1, WT-535, WT-536-1, WT-538-1, WT-539-1, WT-540-1, WT-542-1,
WT-543-1, WT-544-1, WT-545-1, WT-547-1, WT-548-1, WT-549-1, WT-550-1, WT-551-1,
WT-552-1, WT-553-1, WT-554, WT-555-1, WT-557-1, WT-558-1, WT-559-1, WT-560-1,
WT-561-1, WT-562-1, WT-565-1, WT-566-1, WT-567-1, WT-568-1, WT-569-1, WT-570-1,
WT-571-1, WT-572-1, WT-573-1, WT-574-1, WT-575-1, WT-576-1, WT-577-1, WT-578-1,
WT-579-1, WT-580-1, WT-580-1, WT-582-1, WT-583-1, WT-584-1, WT-586-1, WT-587-1,
WT-588-1, WT-589-1, WT-590-1, WT-591-1, WT-592-1, WT-593-1, WT-594-1, WT-595,
WT-596-1, WT-597-1, WT-598-1, WT-599-1, WT-600-1, WT-602-1, WT-606-1, WT-607-1,
WT-609-1, WT-610-1, WT-611, WT-612-1, WT-614-1, WT-616-1, WT-617-1, WT-618-1,
WT-619-1, WT-622-1, WT-624-1, WT-625-1, WT-626-1, WT-627-1, WT-628-1, WT-629-1,
WT-630-1, WT-631-1, WT-632-1, WT-634-1, WT-635-1, WT-636-1, WT-637, WT-638-1,
WT-639-1, WT-640-1, WT-641-1, WT-642-1, WT-646-1, WT-647-1, WT-648-1, WT-649-1,
WT-650-1, WT-652, WT-656-1, WT-657-1, WT-659, WT-660-1, WT-661-1, WT-662-1,
WT-664-1, WT-665-1, WT-666-1, WT-667-1, WT-669-1, WT-670-1, WT-671-1, WT-673-1,
WT-674-1, WT-675-1, WT-678-1, WT-679-1, WT-680-1, WT-681, WT-682-1, WT-684-1,
WT-685-1, WT-686-1, WT-687-1, WT-724-1 WT-688-1, WT-689-1, WT-690-1, WT-691-1,
WT-692-1, WT-693-1, WT-695-1, WT-695-1, WT-697-1, WT-698-1, WT-699-1, WT-700-1,
WT-701-1, WT-702-1, WT-705-1, WT-706-1, WT-707-1, WT-708-1, WT-709-1, WT-710-1,
WT-711-1, WT-712-1, WT-713-1, WT-716-1, WT-717-1, WT-718-1, WT-719, WT-720-1,
WT-721-1, WT-722-1, WT-722-1, WT-725-1, WT-726-1, WT-727-1, WT-728-1, WT-729-1,
WT-731-1, WT-732-1, WT-737-1, WT-738-1, WT-739-1, WT-742-1, WT-743-1, WT-745-1,
WT-746-1, WT-747-1, WT-748-1, WT-749-1, WT-750-1, WT-751-1, WT-752-1, WT-753-1,
WT-754-1, WT-755-1, WT-756-1, WT-757-1, WT-758-1, WT-759-1, WT-760-1, WT-761-1,
WT-762-1, WT-763-1, WT-764-1, WT-766-1, WT-767, WT-769-1, WT-772-1, WT-774-1,
WT-776-1, WT-777-1, WT-778-1, WT-779-1, WT-780-1, WT-781-1, WT-782-1, WT-783-1,
WT-784-1, WT-785-1, WT-786-1, WT-787-1, WT-788-1, WT-789-1, WT-790, WT-791,
WT-792-1, WT-793-1, WT-794-1, WT-795-1, WT-796-1, WT-797-1, WT-798-1, WT-799-1,
WT-801-1, WT-802-1, WT-803-1, WT-804-1, WT-805-1, WT-807-1, WT-808-1, WT-809,
WT-811-1, WT-812-1, WT-814-1, WT-815-1, WT-816-1, WT-817-1, WT-818-1, WT-818-1,
WT-820-1, WT-823-1, WT-825-1, WT-826-1, WT-827-1, WT-828, WT-829-1, WT-830-1,
WT-831-1, WT-832-1, WT-834-1, WT-835-1, WT-836-1, WT-837, WT-838-1, WT-839-1,
WT-840-1, WT-841-1, WT-843-1, WT-844-1, WT-845-1, WT-846-1, WT-847-1, WT-850-1,
WT-851, WT-852-1, WT-853-1, WT-854, WT-855-1, WT-856-1, WT-857-1, WT-858-1,
WT-860-1, WT-861-1, WT-862-1, WT-863-1, WT-864-1, WT-865-1, WT-866-1, WT-867,
WT-868, WT-869-1, WT-870-1, WT-871, WT-872-1, WT-873-1, WT-874, WT-875-1, WT-876,
WT-877, WT-878-1, WT-879-1, WT-880, WT-881, WT-885, WT-886, WT-887, WT-888,
WT-889-1, WT-890, WT-891-1, WT-892, WT-893, WT-895-1, WT-896-1, WT-897-1, WT-898,
WT-899-1, WT-900-1, WT-901-1, WT-902-1, WT-903, WT-904, WT-905-1, WT-906-1, WT-907,
WT-908-1, WT-909-1, WT-910-1, WT-912, WT-913, WT-914, WT-915-1, WT-916, WT-917-1,
WT-918-1, WT-920, WT-921, WT-924-1, WT-925-1, WT-927-1, WT-928, WT-929-1, WT-930-1,
WT-931, WT-932-1, WT-933, WT-934-1, WT-935-1, WT-936-1, WT-937-1, WT-938, WT-941-1,
WT-942-1, WT-943-1, WT-944-1, WT-946-1, WT-947, WT-948-1, WT-949, WT-951, WT-954,
Fits:WT-956-1, WT-957, WT-958, WT-959, WT-960, WT-961, WT-962, WT-963, WT-964-1, WT-965,
WT-966, WT-967, WT-968-1, WT-969, WT-970-1, WT-971, WT-972, WT-973-1, WT-974,
WT-975-1, WT-976, WT-977, WT-978, WT-979, WT-980-1, WT-981-1, WT-982, WT-983,
WT-984-1, WT-985-1, WT-986, WT-991-1, WT-992-1, WT-993-1, WT-994, WT-996-1, WT-999,
WT-1000, WT-1001, WT-1002, WT-1003, WT-1004, WT-1006, WT-1007, WT-1008-1,
WT-1009-1, WT-1010, WT-1011-1, WT-1012-1, WT-1013, WT-1014-1, WT-1015, WT-1016-1,
WT-1017-1, WT-1018-1, WT-1019-1, WT-1020-1, WT-1021, WT-1022-1, WT-1023, WT-1024,
WT-1025, WT-1026-1, WT-1027-1, WT-1028-1, WT-1030-1, WT-1031-1, WT-1034-1,
WT-1036-1, WT-1037-1, WT-1038, WT-1039-1, WT-1041-1, WT-1042-1, WT-1043, WT-1045,
WT-1046-1, WT-1047, WT-1048-1, WT-1049-1, WT-1050-1, WT-1051, WT-1053-1, WT-1054,
WT-1055-1, WT-1056, WT-1057, WT-1058-1, WT-1059-1, WT-1061-1, WT-1062, WT-1063,
WT-1064A, WT-1065, WT-1066-1, WT-1067, WT-1068-1, WT-1069, WT-1070, WT-1071,
WT-1072-1, WT-1073, WT-1074, WT-1075, WT-1076, WT-1077, WT-1078, WT-1080, WT-1081,
WT-1082, WT-1084-1, WT-1085-1, WT-1086-1, WT-1087, WT-1089-1, WT-1090, WT-1091-1,
WT-1092-1, WT-1093-1, WT-1094, WT-1095, WT-1097, WT-1098, WT-1099-1, WT-1100,
WT-1102-1, WT-1103, WT-1105, WT-1106, WT-1108-1, WT-1109-1, WT-1110-1, WT-1111-1,
WT-1112, WT-1113, WT-1115, WT-1116-1, WT-1117, WT-1118, WT-1119, WT-1120, WT-1121,
WT-1122, WT-1123-1, WT-1124, WT-1125-1, WT-1126, WT-1127, WT-1128, WT-1129-1,
WT-1130-1, WT-1131-1, WT-1132-1, WT-1133-1, WT-1134, WT-1135, WT-1136, WT-1137,
WT-1138-1, WT-1139-1, WT-1141-1, WT-1142, WT-1143-1, WT-1145-1, WT-1147-1,
WT-1148-1, WT-1149-1, WT-1150-1, WT-1151-1, WT-1153-1, WT-1154-1, WT-1155-1,
WT-1156-1, WT-1157, WT-1158, WT-1159-1, WT-1160-1, WT-1161, WT-1163-1, WT-1164-1,
WT-1166, WT-1167, WT-1168-1, WT-1169, WT-1170-1, WT-1172, WT-1174, WT-1178,
WT-1179-1, WT-1180-1, WT-1181, WT-1182, WT-1183, WT-1185, WT-1187-1, WT-1188,
WT-1189, WT-1192-1, WT-1193, WT-1196, WT-1197, WT-1198, WT-1199, WT-1200, WT-1202,
WT-1204, WT-1207, WT-1208, WT-1209-1, WT-1212-1, WT-1213-1, WT-1215-1, WT-1217,
WT-1218, WT-1219, WT-1220, WT-1221, WT-1222, WT-1223-1, WT-1224, WT-1225-1,
WT-1228, WT-1230, WT-1231, WT-1232, WT-1233, WT-1234, WT-1239, WT-1240, WT-189B,
WT-76C, WTA-30-1, WTA-32-1, WTA-33-1, WTA-34, WTA-35-1, WTA-36, WZ-1, WZ-2, WZ-3-1,
WZ-4-1, WZ-5-1, WZ-6-1, WZ-7-1, WZ-8-1, WZ-9-1, WZ-10-1, WZ-11-1, WZ-12-1, WZ-13-1,
WZ-14-1, WZ-15-1, WZ-16, WZ-16-1, WZ-17-1, WZ-18-1, WZ-19-1, WZ-20-1, WZ-21-1,
WZ-22-1, WZ-23-1, WZ-24-1, WZ-25-1, WZ-26-1, WZ-27-1, WZ-28-1, WZ-29-1, WZ-30-1,
WZ-31-1, WZ-32, WZ-33-1, WZ-34-1, WZ-35-1, WZ-36-1, WZ-37-1, WZ-38-1, WZ-39-1,
WZ-40-1, WZ-41-1, WZ-42-1, WZ-43-1, WZ-44-1, WZ-45-1, WZ-46-1, WZ-47-1, WZ-48 and
WZ-49 carburettor models. Please refer to the notes below.
Features:A membrane with a high grade teflon film in the centre and a stainless steel spiral
diaphragm - impervious to the effects of Ethanol and other additives found in
modern fuels.
Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to
use the new spiral diaphragm kits.
All parts (except the metering lever) are contained in a clever installation sleeve
to make assembly quicker and easier (refer to notes below).
Standard Pack Quantity:1 (1 pack of 5 kits)
Please Note:Warning - These parts are extremely durable inside the carburettor but fragile to
handle - DO NOT bend or crease the membrane when handling or during assembly! The
stainless steel spiral is more forgiving but care is still required when handling
it. The metering lever must be replaced with the new one supplied, please reuse the
old metering lever pin. If your workshop does not already have one, Walbro
recommends purchasing the brass "W" gauge (part number OMK500-528) to properly set
metering lever height. For a singular version of this upgrade kit which includes
the brass "W" gauge use our part number K1-WYTA .
Note:Fitting instructions -
1. Remove metering cover, old diaphragm and gasket.
2. Remove the metering lever and replace with the new one supplied, reusing the old
metering lever pin.
3. Reset the metering lever height using the updated version of the brass "W" gauge
part number OMK500-528 (sold separately). The adjustment point on the brass gauge
is on the bottom, the indentation you need to set the lever height is below the
word "Spiral".
4. Install the new gaskets and diaphragm onto the carburettor while still contained
inside the installation sleeve (Important - install onto the two metal pins, making
sure that the word "TOP" printed on the installation sleeve is facing up).
5. Hold the installation sleeve with one hand and put the metering cover on over
the top to hold it down.
6. Install the four screws and start them by just one turn each.
7. Then remove the clip off the end and pull the installation sleeve out, then
torque the screws down normally.
Footnote:When comparing this fitment application information to your carburettor model
please disregard all letters (A, B, C) and -1 that may be at the end of your
carburetor model number.
Brand:Genuine Walbro,
Product Line:Diaphragm and Gasket Set, Gasket and Diaphragm Set, Metering Diaphragm and Gasket
kit - Spiral, Spiral Metering Diaphragm and Gasket Set,
Walbro K6-wyta Spiral Diaphragm Upgrade Kit
$244.79
PayPal Logo
Afterpay Logo
SKU K6-WYTA
MPN WT-956-1, WT-957, WT-958, WT-959, WT-960, WT-961, WT-962, WT-963, WT-964-1, WT-965
Brand GASPARES
AvailabilityAvailable
Wishlist

Related Products

Aftermarket

Oem Spiral Metering Diaphragm Walbro K1-wyta...

$49.50
Add to Cart Wishlist
