Features
| Model Number | 3057 |
|---|
| Engine Type | V-Twin, 4-stroke, air cooled, OHV (Overhead Valve) |
|---|
| Gross HP* (kW) @ 3’600 rpm | 16 |
|---|
| Engine Displacement (cc) | 479 |
|---|
| Cylinder | Cast Iron Sleeve |
|---|
| Bore (mm) | 68 |
|---|
| Stroke (mm) | 66 |
|---|
| Number of Cylinders | 2 |
|---|
| Oil Capacity | 1.7 |
|---|
| Weight | 32.4kg |
|---|
| Length | 429mm |
|---|
| Width | 404mm |
|---|
| Height | 310mm |
|---|
| Shaft | 1 inch keyed |
|---|
| V-Twin OHV Technology | Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight |
|---|
| Dura-Bore Cast Iron Cylinder Sleeve | Withstands wear while providing improved oil control |
|---|
| Centrally Located Oil Pump and Pickup | Faster priming and allows for a higher angle of operation |
|---|
| High Efficiency Head Design | Angled ports optimizes tumble and mixture preparation for improved efficiency, smoother idle, lower emissions and more power |
|---|
| Dynamically Balanced Crankshaft | Minimizes engine noise and vibration |
|---|
| Mechanical Compression Release | Smooth easy starting, longer starter life and provides an instant return to maximum power |
|---|
| Poly-Core Blower Housing | Lowers noise level and improves sound quality |
|---|
| Full Pressure Lubrication with Oil Filter | Durability |
|---|
| Magnetron® Electronic Ignition | Fast, reliable and maintenance-free starting. |
|---|
| Cooler Cleaner Technology (efficient fan, improved debris management) | Efficiently reduces engine and oil temperatures by 25-30 degrees while effectively managing airborne debris |
|---|
| Full Pressure Lubrication w/ Spin-On Oil Filter | Cleans oil and protects engine components to ensure maximum lubrication and long life |
|---|
| Oil Cooler | Reduces oil temperature, improves lubrication and extends oil change intervals |
|---|
| Light Weight Piston & Ring Package | Lowers noise, vibration, oil consumption, emissions and wear |
|---|
| Low Profile Dual-Clean® Air Cleaner | Industrial Pleated paper with foam pre-cleaner for extended engine life |
|---|
| Magnetron® Electronic Ignition | Quick dependable starts with no maintenance required |
|---|
| Mechanical Governor | Better performance |
|---|
| Cast Iron Sleeve | Withstands wear and abuse. |
|---|
| Automotive Style Air Cleaner With Foam Pre-Cleaner | Added protection |
|---|

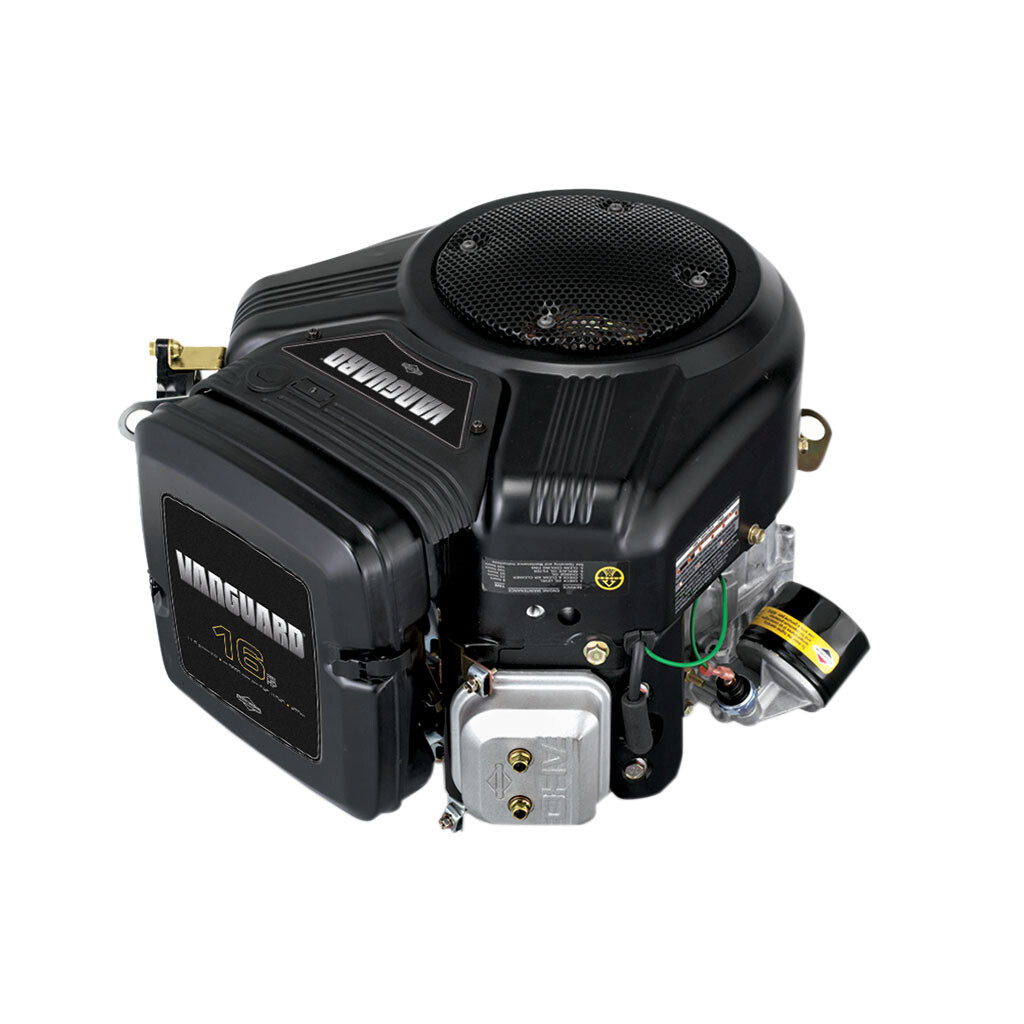

The Vanguard® range of vertical shaft V-Twin engines have been designed and application engineered to meet the requirements of the most demanding applications. Available in 4 different power ratings, this is the first in the range at 16hp and is ideal for ride on mowers and smaller zero-turn units. These Vanguard engines offer a 3-Year Limited Global Warranty.
If you want to power your unit one of the most durable and well build vertical shaft engines on the market - look no further than a Vanguard.
