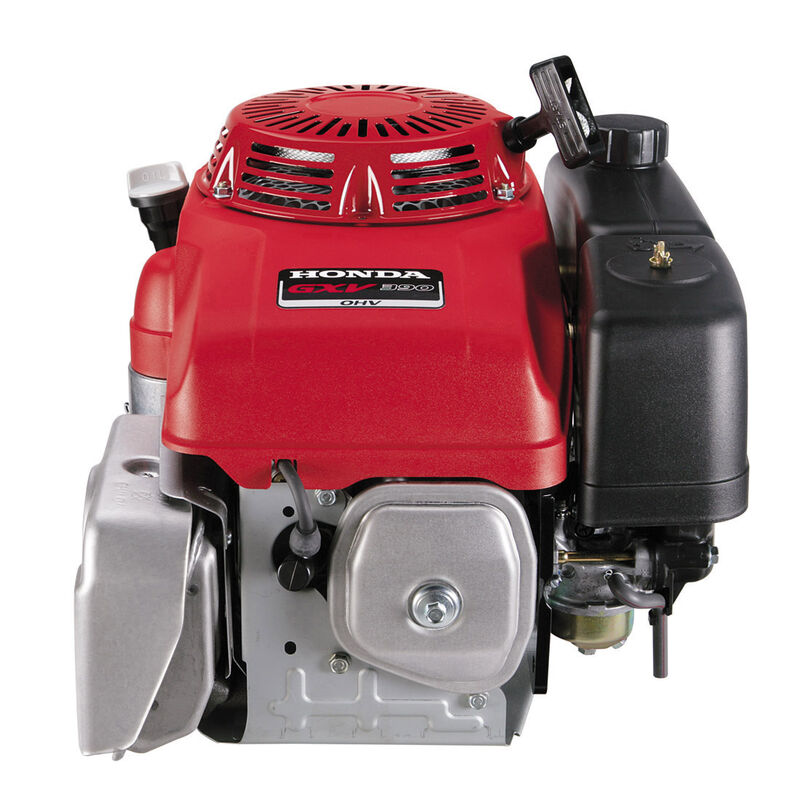

Honda GXV390 Petrol 4-Stroke Engine
Key Features
- Genuine Honda
- 1inch crankshaft
- Recoil and electric start options
- Muffler & fuel tank included
- 10hp motor
Features
| Engine | Air-cooled 4-stroke OHV |
|---|---|
| Bore x Stroke | 88 X 64 mm |
| Displacement | 389 cm3 |
| Net Power Output* | 10.2 hp (7.6 kW) @ 3,600 rpm |
| Net Torque | 17.8 lb-ft (24.2 Nm) @ 2,500 rpm |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side |
| Compression Ratio | 7.7:1 |
| Carburetor | Float Type |
| Starting System | Recoil |
| Lubrication System | Pressure and splash |
| Governor System | Centrifugal Mechanical |
| Air Cleaner | Dual element |
| Oil Capacity | 1.1l |
| Fuel Tank Capacity | 2.1 liters |
| Dry Weight | 33.3 kg |
| Diamensions | 433 x 382 x 406 (mm) L x w x h |
| FUEL EFFICIENT, HIGH OUTPUT OPERATION Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency. OHV design for increased efficiency and optimal power transfer. High compression ratio for better fuel efficiency | |
| SMOOTH PERFORMANCE Precision engineered components result in lower vibration. Ball bearing supported crankshaft for greater stability. Dual balancer shafts | |
| EXCEPTIONALLY QUIET Large capacity, multi-chamber exhaust system. Reduced mechanical noise due to light weight, noise-reducing materials. Forged steel crankshaft and rigid crankcase. Helical cut gears. Sophisticated air intake system | |
| PROVEN RELIABILITY Oil Alert Learn More Cast iron cylinder sleeve. High quality materials, fit, and finish. Dual element air cleaner. Fuel Valve 3-Year Limited Warranty | |
| EASY TO USE AND MAINTAIN Large fuel tanks. Large fuel tank. Large automotive type fuel cap. Easy, convenient, heavy duty control box. Easily accessible spark plug | |
| EASY STARTING Heavy duty recoil starter. Automatic mechanical de-compression system |
The GXV390 engine is used on a variety of agricultural pieces of equipment. It is a reliable and durable source of petrol power that is built to operate day-in-day-out.
It has a precision camshaft design that offers precise valve timing and optimal valve overlap for greater fuel efficiency. With reduced vibration, quiet operation and proven reliability, you can't go wrong with a Honda-powered unit.
Features a dual-element air filter, 3-year domestic warranty, forged steel crankshaft, helical gears and multi-chamber exhaust system.
| SKU | Start Type | Oil Alert | Option 3 | Availability | |
|---|---|---|---|---|---|
 | GXV390UT1DXX2 | Recoil Only | Yes - Oil Alert | Available | |
| GXV390RT1DAEU | Recoil & Electric | No - Oil Alert | Available | |
| GXV390UT1DXXE | Recoil & Electric | Yes - Oil Alert | Available |
Related Products
Starter Hdl Hond 28461-ze2-w03
Honda Starter Handle To Suit Gx240, Gx270, Gx390, Gx610, Gx620, Gxv340, Gxv390, Gxv610 And Gxv620 Engines...
Start Sprg Honda 28442-zh8-003
Honda Gx100, Gx120, Gx160, Gx200 And Gxv160 Recoil Starter Spring. 28442zh8003...
Start Sprg Honda 28442-ze2-w01
Honda Gx240, Gx270, Gx340, Gx390, Gx610, Gx620, Gxv340, Gxv390, Gxv610 And Gxv620 Recoil Starter Spring. 28442ze2w01...
Start Sprg Honda 28442-896-810
Honda Gxv120, Gxv160, Hr17, Hr194, Hr214, Hr216 And Hrc216 Recoil Strater Spring. 28442896810...
Start Assy Honda 24800-zg9-803
Honda Gxv140 And Gxv160 Starter Assembly. 28400-zg9-803...
Honda Air Cleaner Wing Nut 90325-044-000
Honda Wing Nut To Suit Gx110, Gx120, Gx160, Gx200, Gx240, Gx270, Gx340, Gx390, Gxv120, Gxv140, Gxv160, Gxv390 Engines. 90325044000...
Oil Filter Honda
Honda Oil Filter To Suit Gx610, Gx620, Gx630, Gx660, Gx670, Gx690, Gxv340, Gxv390, Gxv610, Gxv620, Gxv630, Gxv660, Gxv670 Engines....

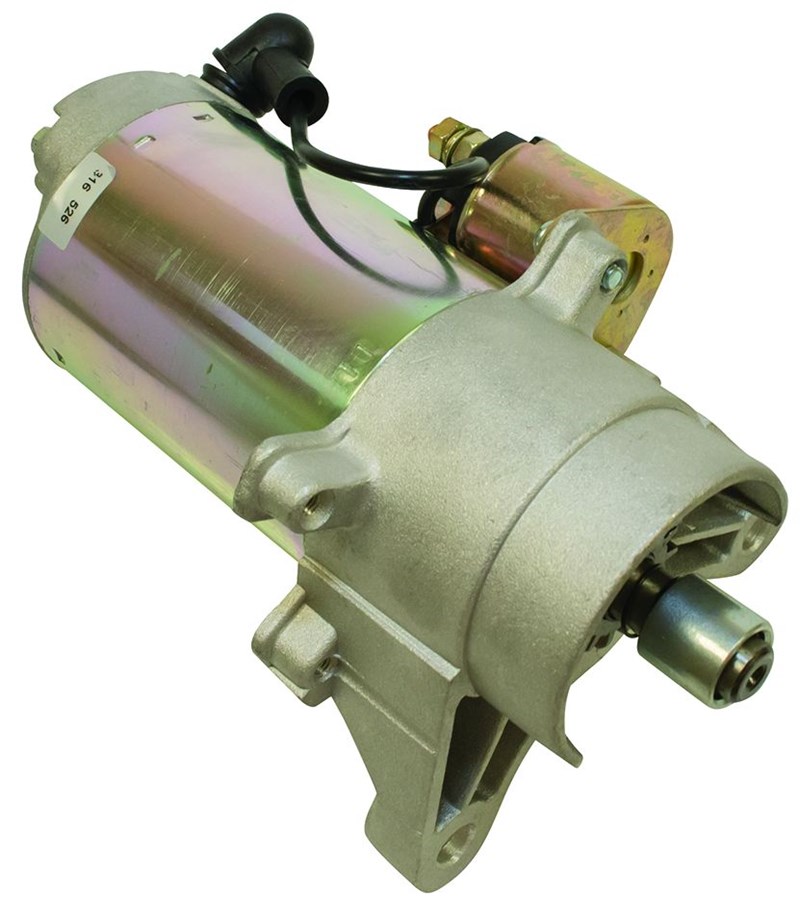

Electric Starter Motor Honda 31200-ze8-801
Honda Gx660k1, Gxv270, Gxv340 And Gxv390 Electric Starter. 31200ze8801...
Electric Starter Motor Honda 31200-zf5-l32
Electric Starter Honda 31200-zf5-l32...
Air Filter Honda 17210-ze7-505
Honda Air Filter, Suits Most Gxv160. 17210ze7305...

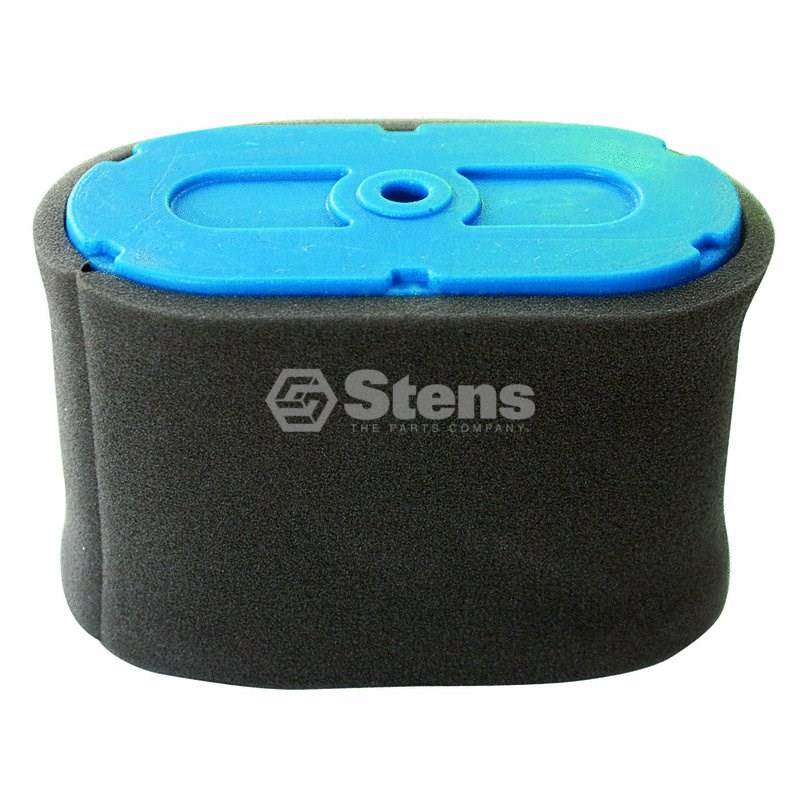

Air Filter Honda 17211-zf5-v01
