Specifications
| Engine | V-Twin, 4-stroke, air-cooled, OHV |
|---|
| Starter Type | Electric and Rewind |
|---|
| Gross Power | 18 HP @ 3600 RPM |
|---|
| Compression Ratio | 8.2:1 |
|---|
| Displacement | 570 cc |
|---|
| Cylinder | Cast Iron Sleeve |
|---|
| Bore | 71.88 mm |
|---|
| Stroke | 70.1mm |
|---|
| Oil Capacity | 1.4L |
|---|
| Dry Weight | 39.46kg |
|---|
| Shaft | J609 Taper |
|---|

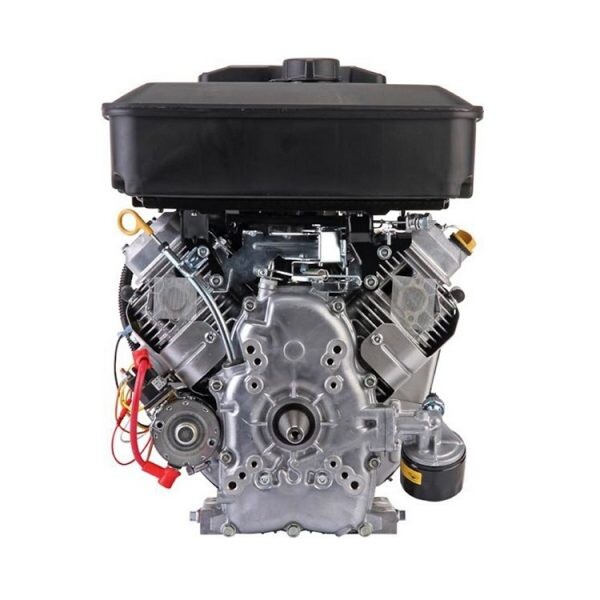

This engine is specifically designed for generators featuring a tapered shaft.
Each Vanguard™ engine is design-engineered to dependably take on the most demanding commercial applications. As the lightest and most compact V-Twins among leading brands, the Vanguard™ small blocks feature a number of advanced technologies and integrated components to put more power in a smaller space.
Please note this engine is supplied WITHOUT a muffler.
