Genuine

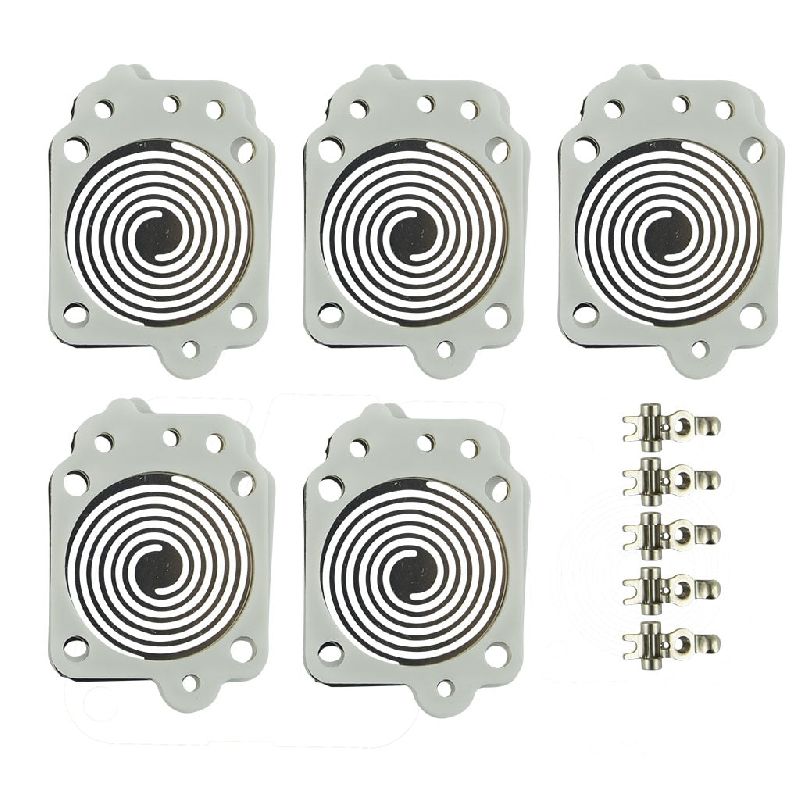

Walbro K8-wyta Spiral Diaphragm Upgrade Kit
Specifications
| Description: | Genuine Walbro K8-WYTA - 5-Pack Of K3-WYTA Spiral Metering Diaphragm Upgrade Kits - |
|---|---|
| Without Brass "W" Gauge | |
| Editorial: | Walbro's K3-WYTA patented spiral metering diaphragm upgrade kit in a 5-pack without |
| the brass "W" gauge. These repair kits allow you to convert your carburettor from | |
| the traditional rubber metering diaphragm to Walbro's ethanol compliant spiral | |
| metering diaphragm. The new spiral metering diaphragm is impervious to the effects | |
| of Ethanol and additives in modern fuels and does not deteriorate with age. | |
| Replaces OEM: | Walbro K8-WYTA |
| Fits: | This genuine Walbro K8-WYTA spiral metering diaphragm and gasket upgrade kit 5-pack |
| is suitable for use with selected Walbro carburettor models including but not | |
| limited to WA-167-1, WLA-1-1, WLA-2-1, WLA-3-1, WLA-4-1, WLA-5-1, WLA-6-1, WLB-1-1, | |
| WLB-2-1, WLB-3-1, WLB-5-1, WT-62-1, WT-69-1, WT-71-1, WT-78-1, WT-80-1, WT-81-1, | |
| WT-117-1, WT-137-1, WT-139-1, WT-140-1, WT-145-1, WT-165-1, WT-173-1, WT-179-1, | |
| WT-180-1, WT-181-1, WT-186-1, WT-188-1, WT-191-1, WT-199-1, WT-200-1, WT-206-1, | |
| WT-212-1, WT-212-1, WT-227-1, WT-236-1, WT-243-1, WT-244-1, WT-244-1, WT-255-1, | |
| WT-259-1, WT-264-1, WT-278-1, WT-280-1, WT-292-1, WT-304-1, WT-318-1, WT-318-1, | |
| WT-329-1, WT-330-1, WT-352-1, WT-364-1, WT-369-1, WT-371-1, WT-379-1, WT-393-1, | |
| WT-397-1, WT-412-1, WT-413-1, WT-419-1, WT-422-1, WT-423-1, WT-432-1, WT-440-1, | |
| WT-445-1, WT-447-1, WT-469-1, WT-471-1, WT-474-1, WT-496-1, WT-524-1, WT-601-1, | |
| WT-603-1, WT-604-1, WT-605-1, WT-615-1, WT-620-1, WT-621-1, WT-633-1, WT-643-1, | |
| WT-644-1, WT-654-1, WT-655-1, WT-663-1, WT-668-1, WT-676-1, WT-677-1, WT-694-1, | |
| WT-703-1, WT-714-1, WT-715-1, WT-730-1, WT-733-1, WT-734-1, WT-741-1, WT-765-1, | |
| WT-768-1, WT-771-1, WT-773-1, WT-775-1, WT-800-1, WT-806-1, WT-810-1, WT-813-1, | |
| WT-822-1, WT-945-1, WT-990-1, WT-998-1, WT-1029-1, WT-1040-1, WT-1052-1, WT-1101-1, | |
| WT-1107-1, WT-1177-1, WT-1190-1, WY-1-1, WY-3-1, WY-4-1, WY-5-1, WY-6-1, WY-7-1, | |
| WY-8-1, WY-9-1, WY-10-1, WY-12-1, WY-13-1, WY-14-1, WY-15-1, WY-16-1, WY-17-1, | |
| WY-18-1, WY-19-1, WY-20-1, WY-21-1, WY-22-1, WY-23-1, WY-24-1, WY-25-1, WY-26-1, | |
| WY-27-1, WY-28-1, WY-30-1, WY-31-1, WY-32-1, WY-33-1, WY-34-1, WY-35-1, WY-36-1, | |
| WY-37-1, WY-38-1, WY-39-1, WY-40-1, WY-42-1, WY-43-1, WY-44-1, WY-45-1, WY-46-1, | |
| WY-47-1, WY-48-1, WY-49-1, WY-50-1, WY-51-1, WY-52-1, WY-53-1, WY-54-1, WY-55-1, | |
| WY-56-1, WY-57-1, WY-59-1, WY-60-1, WY-61-1, WY-62-1, WY-63-1, WY-64-1, WY-65-1, | |
| WY-66-1, WY-67-1, WY-68-1, WY-69-1, WYA-5-1, WYA-53-1, WYA-65-1, WYA-66-1, | |
| WYA-67-1, WYA-104-1, WYA-122-1, WYA-124-1, WYA-125-1, WYA-132-1, WYA-150-1, | |
| WYA-153-1, WYA-161-1, WYA-163-1, WYA-181-1, WYA-187-1, WYA-188-1, WYA-189-1, | |
| WYA-190-1, WYA-191-1, WYA-192-1, WYA-193-1, WYA-211, WYA-218-1, WYA-219-1, | |
| WYA-223-1, WYA-224-1, WYA-236-1, WYA-237-1, WYA-238-1, WYA-243-1, WYA-244-1, | |
| WYA-246-1, WYA-247-1, WYA-251-1, WYA-252-1, WYA-253-1, WYA-255-1, WYA-256-1, | |
| WYA-264-1, WYA-273-1, WYA-274-1, WYA-275-1, WYA-280-1, WYC-3-1, WYC-4-1, WYC-6-1, | |
| WYC-12-1, WYC-14-1, WYC-16-1, WYC-17-1, WYC-20-1, WYC-23-1, WYC-24-1, WYC-25-1, | |
| WYC-32-1, WYJ-2-1, WYJ-3-1, WYJ-4-1, WYJ-5-1, WYJ-6-1, WYJ-7-1, WYJ-8-1, WYJ-9-1, | |
| WYJ-10-1, WYJ-11-1, WYJ-12-1, WYJ-13-1, WYJ-14-1, WYJ-15-1, WYJ-16-1, WYJ-18-1, | |
| WYJ-19-1, WYJ-20-1, WYJ-21-1, WYJ-22-1, WYJ-23-1, WYJ-24-1, WYJ-25-1, WYJ-26-1, | |
| WYJ-27-1, WYJ-28-1, WYJ-29-1, WYJ-30-1, WYJ-31-1, WYJ-32-1, WYJ-33-1, WYJ-34-1, | |
| WYJ-35-1, WYJ-36-1, WYJ-37-1, WYJ-38-1, WYJ-39-1, WYJ-40-1, WYJ-41-1, WYJ-42-1, | |
| WYJ-43-1, WYJ-44-1, WYJ-45-1, WYJ-46-1, WYJ-47-1, WYJ-48-1, WYJ-49-1, WYJ-50-1, | |
| WYJ-52-1, WYJ-53-1, WYJ-54-1, WYJ-55-1, WYJ-56-1, WYJ-57-1, WYJ-59-1, WYJ-60-1, | |
| WYJ-61-1, WYJ-62-1, WYJ-63-1, WYJ-64-1, WYJ-65-1, WYJ-66-1, WYJ-67-1, WYJ-68-1, | |
| WYJ-69-1, WYJ-70-1, WYJ-71-1, WYJ-72-1, WYJ-73-1, WYJ-74-1, WYJ-75-1, WYJ-76-1, | |
| WYJ-77-1, WYJ-78-1, WYJ-79-1, WYJ-80-1, WYJ-81-1, WYJ-82-1, WYJ-83-1, WYJ-84-1, | |
| WYJ-86-1, WYJ-87-1, WYJ-88-1, WYJ-89-1, WYJ-90-1, WYJ-91-1, WYJ-92-1, WYJ-93-1, | |
| WYJ-94-1, WYJ-96-1, WYJ-97-1, WYJ-98-1, WYJ-138-1, WYK-1-1, WYK-2-1, WYK-3-1, | |
| WYK-4-1, WYK-5-1, WYK-6-1, WYK-7-1, WYK-8-1, WYK-9-1, WYK-10-1, WYK-11-1, WYK-12-1, | |
| WYK-13-1, WYK-13-1, WYK-14-1, WYK-15-1, WYK-16-1, WYK-17-1, WYK-18-1, WYK-20-1, | |
| WYK-21-1, WYK-22-1, WYK-23-1, WYK-24-1, WYK-25-1, WYK-25-1, WYK-26-1, WYK-27-1, | |
| WYK-28-1, WYK-29-1, WYK-29-1, WYK-30-1, WYK-31-1, WYK-32-1, WYK-33-1, WYK-34-1, | |
| WYK-35-1, WYK-36-1, WYK-37-1, WYK-38-1, WYK-39-1, WYK-40-1, WYK-41-1, WYK-42-1, | |
| WYK-43-1, WYK-44-1, WYK-45-1, WYK-46-1, WYK-47-1, WYK-48-1, WYK-49-1, WYK-50-1, | |
| WYK-51-1, WYK-52-1, WYK-53-1, WYK-54-1, WYK-55-1, WYK-56-1, WYK-57-1, WYK-58-1, | |
| WYK-63-1, WYK-64-1, WYK-65-1, WYK-68-1, WYK-69-1, WYK-71-1, WYK-75-1, WYK-78-1, | |
| WYK-82, WYK-85-1, WYK-87-1, WYK-88-1, WYK-90-1, WYK-91-1, WYK-92-1, WYK-93-1, | |
| WYK-94-1, WYK-99-1, WYK-102-1, WYK-105-1, WYK-108-1, WYK-109-1, WYK-110-1, | |
| WYK-113-1, WYK-114-1, WYK-115-1, WYK-119-1, WYK-120-1, WYK-121-1, WYK-124-1, | |
| WYK-129-1, WYK-130-1, WYK-131-1, WYK-132-1, WYK-133-1, WYK-135-1, WYK-136-1, | |
| WYK-137-1, WYK-138-1, WYK-139-1, WYK-141-1, WYK-142-1, WYK-145-1, WYK-149-1, | |
| WYK-151-1, WYK-154-1, WYK-155-1, WYK-156-1, WYK-159-1, WYK-160-1, WYK-161-1, | |
| WYK-162-1, WYK-163-1, WYK-164-1, WYK-165-1, WYK-166-1, WYK-167-1, WYK-168-1, | |
| WYK-171-1, WYK-174-1, WYK-177-1, WYK-181-1, WYK-182-1, WYK-183-1, WYK-186-1, | |
| WYK-187-1, WYK-188-1, WYK-188-1, WYK-189-1, WYK-190-1, WYK-191-1, WYK-192-1, | |
| WYK-194-1, WYK-196-1, WYK-197-1, WYK-198-1, WYK-199-1, WYK-200-1, WYK-202-1, | |
| WYK-204-1, WYK-205-1, WYK-206-1, WYK-207-1, WYK-210-1, WYK-211-1, WYK-212-1, | |
| WYK-214-1, WYK-216-1, WYK-218-1, WYK-220-1, WYK-222-1, WYK-223-1, WYK-224, | |
| WYK-225-1, WYK-226-1, WYK-227-1, WYK-229-1, WYK-230-1, WYK-233-1, WYK-236-1, | |
| WYK-238-1, WYK-239-1, WYK-240-1, WYK-241-1, WYK-242-1, WYK-243-1, WYK-244-1, | |
| WYK-246-1, WYK-247-1, WYK-248-1, WYK-249-1, WYK-253-1, WYK-254-1, WYK-255-1, | |
| WYK-257-1, WYK-258-1, WYK-261-1, WYK-262-1, WYK-263-1, WYK-264-1, WYK-266-1, | |
| WYK-267-1, WYK-268-1, WYK-269-1, WYK-273-1, WYK-274-1, WYK-278-1, WYK-279-1, | |
| WYK-280-1, WYK-281-1, WYK-282-1, WYK-283-1, WYK-285-1, WYK-289-1, WYK-292-1, | |
| WYK-295-1, WYK-296-1, WYK-297-1, WYK-312-1, WYK-313-1, WYK-323-1, WYK-330-1, | |
| WYK-332-1, WYK-336-1, WYK-339-1, WYK-340-1, WYK-341-1, WYK-342-1, WYK-345-1, | |
| WYK-347-1, WYK-348-1, WYK-351-1, WYK-352-1, WYK-353-1, WYK-356-1, WYK-357-1, | |
| WYK-359-1, WYK-360-1, WYK-366-1, WYK-370-1, WYK-376-1, WYK-377-1, WYK-378-1, | |
| WYK-379-1, WYK-381-1, WYK-387-1, WYK-390-1, WYK-398-1, WYK-399-1, WYK-406-1, | |
| WYK-407-1, WYK-410-1, WYK-442-1, WYK-445-1, WYK-456-1, WYK-480-1, WYK-490-1, | |
| WYK-491-1, WYK-495-1, WYK-496-1, WYK-504-1, WYL-1-1, WYL-2-1, WYL-3-1, WYL-4-1, | |
| WYL-6-1, WYL-7-1, WYL-8-1, WYL-9-1, WYL-10-1, WYL-11-1, WYL-12-1, WYL-13-1, | |
| WYL-14-1, WYL-15-1, WYL-16-1, WYL-17-1, WYL-18-1, WYL-19, WYL-20-1, WYL-21-1, | |
| WYL-23-1, WYL-24-1, WYL-25-1, WYL-26-1, WYL-27-1, WYL-28-1, WYL-29-1, WYL-30-1, | |
| WYL-31-1, WYL-32-1, WYL-33-1, WYL-34-1, WYL-35-1, WYL-36-1, WYL-37-1, WYL-38-1 | |
| carburettor models. please refer to the notes below. | |
| Features: | A membrane with a high grade Teflon film in the centre and a stainless steel spiral |
| diaphragm - impervious to the effects of Ethanol and other additives found in | |
| modern fuels. | |
| Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to | |
| use the new spiral diaphragm kits. | |
| All parts (except the metering lever) are contained in a clever installation sleeve | |
| to make assembly quicker and easier (refer to notes below). | |
| Standard Pack Quantity: | 1 (1 pack of 5 kits) |
| Please Note: | Warning - These parts are extremely durable inside the carburettor but fragile to |
| handle - DO NOT bend or crease the membrane when handling or during assembly! The | |
| stainless steel spiral is more forgiving but care is still required when handling | |
| it. The metering lever must be replaced with the new one supplied, please reuse the | |
| old metering lever pin. If your workshop does not already have one, Walbro | |
| recommends purchasing the brass "W" gauge (part number OMK500-528) to properly set | |
| metering lever height. For a singular version of this upgrade kit which includes | |
| the brass "W" gauge use our part number K3-WYTA | |
| Note: | Fitting instructions - |
| 1. Remove metering cover, old diaphragm and gasket. | |
| 2. Remove the metering lever and replace with the new one supplied, reusing the old | |
| metering lever pin. | |
| 3. Reset the metering lever height using the updated version of the brass "W" gauge | |
| part number OMK500-528 (sold separately). The adjustment point on the brass gauge | |
| is on the bottom, the indentation you need to set the lever height is below the | |
| word "Spiral". | |
| 4. Install the new gaskets and diaphragm onto the carburettor while still contained | |
| inside the installation sleeve (Important - install onto the two metal pins, making | |
| sure that the word "TOP" printed on the installation sleeve is facing up). | |
| 5. Hold the installation sleeve with one hand and put the metering cover on over | |
| the top to hold it down. | |
| 6. Install the four screws and start them by just one turn each. | |
| 7. Then remove the clip off the end and pull the installation sleeve out, then | |
| torque the screws down normally. | |
| Footnote: | When comparing this fitment application information to your carburettor model |
| please disregard all letters (A, B, C) and -1 that may be at the end of your | |
| carburettor model number. | |
| Brand: | Genuine Walbro, |
| Product Line: | Diaphragm and Gasket Set, Gasket and Diaphragm Set, Metering Diaphragm and Gasket |
| kit - Spiral, Spiral Metering Diaphragm and Gasket Set, |
