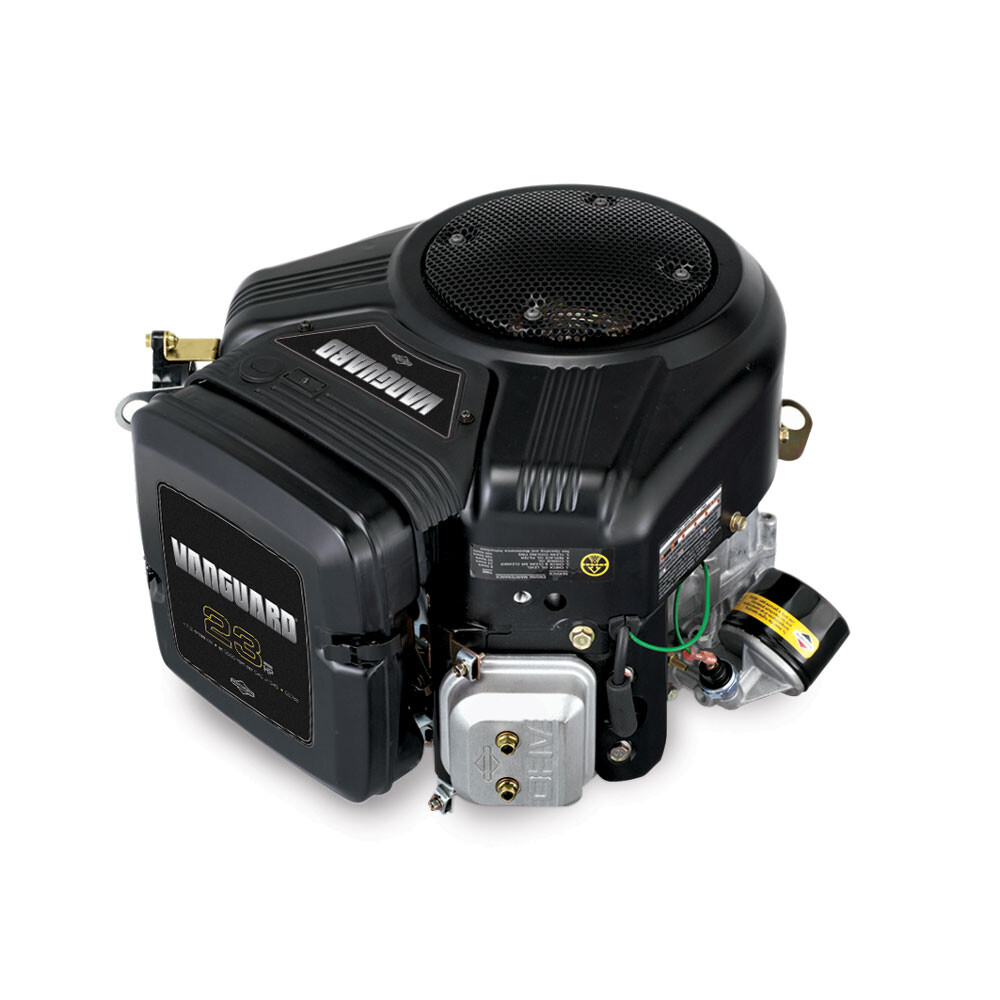

Vanguard 23HP V-Twin Vertical Shaft Engine
Key Features
- 23HP V-Twin
- 1" or 1 1/8" shaft
- 627cc
- 3yr warranty
- High quality air-filtration
- No muffler included
Features
| Model Number | 3867 |
|---|---|
| Engine Type | V-Twin, 4-stroke, air cooled, OHV (Overhead Valve) |
| Gross HP* (kW) @ 3’600 rpm | 23 |
| Engine Displacement (cc) | 627 |
| Cylinder | Cast Iron Sleeve |
| Bore (mm) | 75.5 |
| Stroke (mm) | 70 |
| Number of Cylinders | 2 |
| Oil Capacity | 1.7 |
| Weight | 35kg |
| Length | 443mm |
| Width | 406mm |
| Height | 344mm |
| Shaft | 1 or 1 1/8inch keyed |
| V-Twin OHV Technology | Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight |
| Dura-Bore Cast Iron Cylinder Sleeve | Withstands wear while providing improved oil control |
| Centrally Located Oil Pump and Pickup | Faster priming and allows for a higher angle of operation |
| High Efficiency Head Design | Angled ports optimizes tumble and mixture preparation for improved efficiency, smoother idle, lower emissions and more power |
| Dynamically Balanced Crankshaft | Minimizes engine noise and vibration |
| Mechanical Compression Release | Smooth easy starting, longer starter life and provides an instant return to maximum power |
| Poly-Core Blower Housing | Lowers noise level and improves sound quality |
| Full Pressure Lubrication with Oil Filter | Durability |
| Magnetron® Electronic Ignition | Fast, reliable and maintenance-free starting. |
| Cooler Cleaner Technology (efficient fan, improved debris management) | Efficiently reduces engine and oil temperatures by 25-30 degrees while effectively managing airborne debris |
| Full Pressure Lubrication w/ Spin-On Oil Filter | Cleans oil and protects engine components to ensure maximum lubrication and long life |
| Oil Cooler | Reduces oil temperature, improves lubrication and extends oil change intervals |
| Light Weight Piston & Ring Package | Lowers noise, vibration, oil consumption, emissions and wear |
| Low Profile Dual-Clean® Air Cleaner | Industrial Pleated paper with foam pre-cleaner for extended engine life |
| Magnetron® Electronic Ignition | Quick dependable starts with no maintenance required |
| Mechanical Governor | Better performance |
| Cast Iron Sleeve | Withstands wear and abuse. |
| Automotive Style Air Cleaner With Foam Pre-Cleaner | Added protection |
The Vanguard® range of vertical shaft V-Twin engines have been designed and application engineered to meet the requirements of the most demanding applications. Available in 4 different power ratings, these Vanguard engines offer a 3-Year Limited Global Warranty. The 23HP is the largest of this range and commonly found on ride-on mowers and zero turn units.
If you want to power your unit one of the most durable and well build vertical shaft engines on the market - look no further than a Vanguard.
| SKU | Shaft Size | Option 2 | Option 3 | Availability | |
|---|---|---|---|---|---|
 | 3867770145G1HH0001 | 1" Keyed Shaft | Available | ||
| 3867770154G1HH0001 | 1 1/8" Keyed Shaft | Available |
