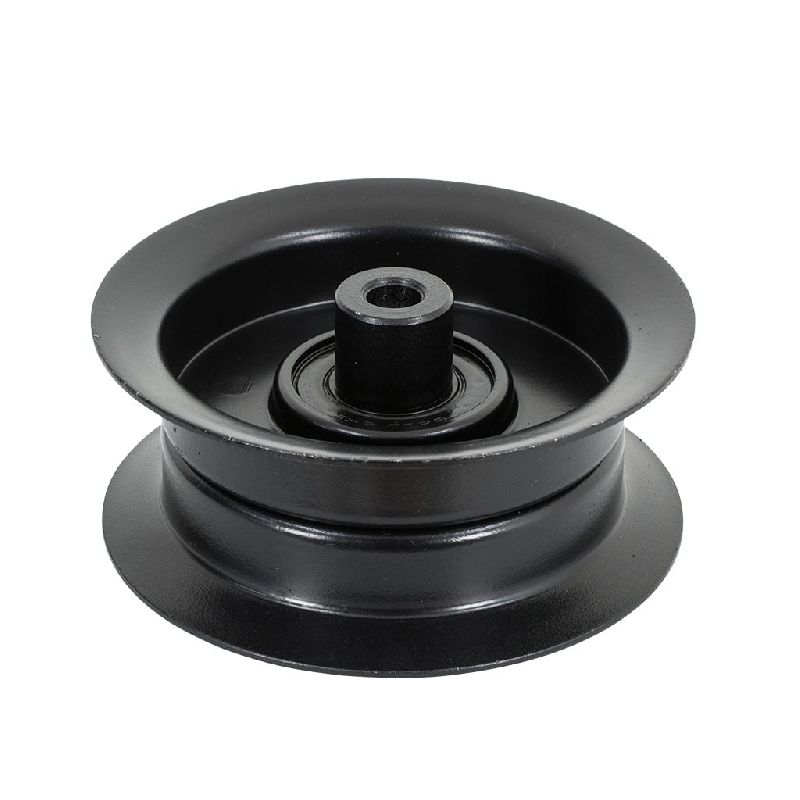

| Description: | TORO Deck Idler Pulley |
|---|
| Replaces OEM: | Replaces TORO OEM 88-5630 |
|---|
| Pulley Dimension A: (inches) | 4 1/8 |
|---|
| Pulley Dimension A: (mm) | 104.77 |
|---|
| Pulley Dimension C: (inches) | 3/8 |
|---|
| Pulley Dimension C: (mm) | 9.52 |
|---|
| Pulley Dimension D: (inches) | 1 1/2 |
|---|
| Pulley Dimension D: (mm) | 38.1 |
|---|
| Fits: | 34" (863 mm) cut TORO TimeCutter MX 3450* (model 74750 years 2015 - 2016) zero turn |
|---|
| radius ride-on models as the deck idler pulley, (2 required per unit). |
|---|
| Fits: | 38" (965 mm) cut TORO XL 380H (model 71246 years 2005 - 2007 and model 71252 years |
|---|
| 2008 - 2010), XLS 380 (model 71254 years 2011 - 2013) ride-on lawn mower models as |
|---|
| the deck idler pulley, (1 required per unit) and TimeCutter Z, 14-38Z (model 74301 |
|---|
| and 74402 year 2003) zero turn radius ride-on models as the deck idler pulley, (2 |
|---|
| required per unit). |
|---|
| Fits: | 42" (1067 mm) cut TORO XLS 420T (model 71255 years 2011 - 2013) ride-on lawn mower |
|---|
| models as the deck idler pulley, (1 required per unit) and TimeCutter Z, 16-42Z |
|---|
| (model 74403 year 2003) zero turn radius ride-on models as the deck idler pulley, |
|---|
| (2 required per unit). |
|---|
| Fits: | 44" (1118 mm) cut TORO XL series cutter deck (deck model 79107 year 1996 ser # |
|---|
| 6900001 - 6999999), XL 440H (deck model 79110 years 2005 onwards with ser # |
|---|
| 250000001 - 310999999) and XL 440H (unit model 71429 year 2005) ride-on lawn mower |
|---|
| models as the deck idler pulley, (2 required per unit). |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | For TORO TimeCutter MX3450 models listed above, to complete the idler pulley set |
|---|
| use with our PUL7430 (replaces OEM 106-2175) deck flat idler pulley x 1. |
|---|
| Brand: | Toro - Non Genuine, |
|---|
| Product Line: | Deck Idler Pulley, |
|---|
