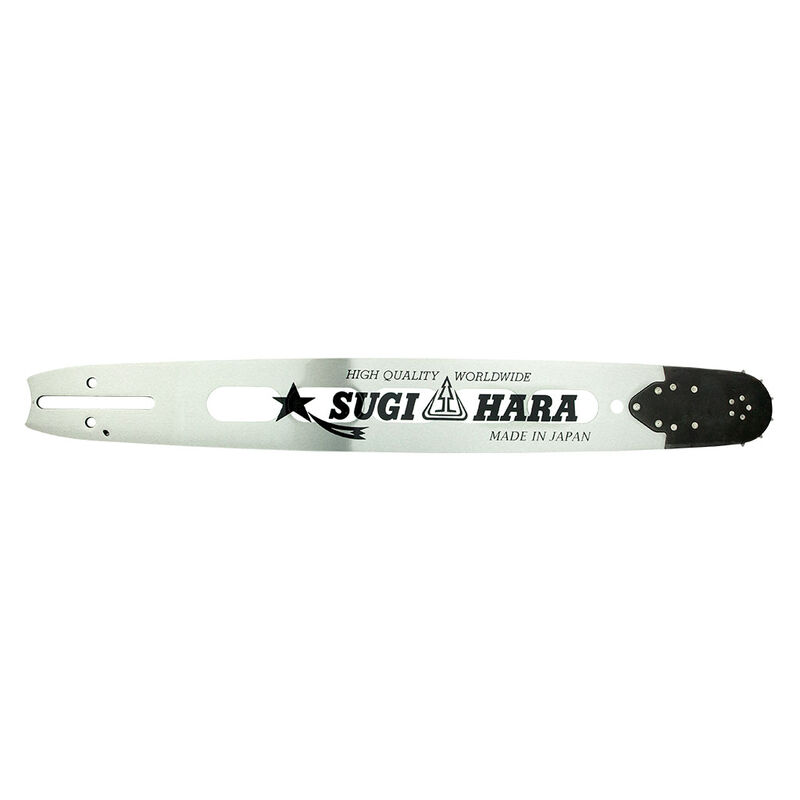

| Description: | PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 20" x 3/8" x .058" x 72 DL, CB |
|---|
| Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan |
|---|
| Editorial: | The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are |
|---|
| manufactured In Japan from a single piece of steel. Manufactured the same way as |
|---|
| the Sugihara Red Label Pro Solid bars but with sections removed and filled with a |
|---|
| rigid, weight reducing resin. One of the best guide bars in the world today |
|---|
| Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular |
|---|
| version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars |
|---|
| are sought after for their high performance and light-weight. They are easily |
|---|
| recognised by the white resin sections and black label. The most striking looking |
|---|
| bar on the market. |
|---|
| Replaces OEM: | Oregon 208RNDD009 |
|---|
| Sugihara - Diatop VT3U-8Q50-A |
|---|
| Features: | PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily |
|---|
| recognised by the white resin sections and black label. |
|---|
| Manufactured the same way as the Sugihara Red Label Pro Solid bars but with |
|---|
| sections removed and filled with a rigid, weight reducing white resin. |
|---|
| This guide bar weighs just 1050g. |
|---|
| Professional premium quality, reduced weight replaceable sprocket nose guide bar. |
|---|
| High durability sprocket nose. |
|---|
| Polished lacquered finish. |
|---|
| Nose fastens with three rivets, and is securely held by wide and strong overlapping |
|---|
| ears. |
|---|
| The long sprocket nose takes most of the abuse, and minimizes wear to the bars |
|---|
| body. |
|---|
| Super tough steel, heat treated up to 4 times on different parts of the guide bar, |
|---|
| provides superior bar-body strength and tough rails with excellent resistance to |
|---|
| wear and chipping. |
|---|
| PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale. |
|---|
| Made in Japan. |
|---|
| All PROKUT guide bars are reversible for longer life. |
|---|
| Length: (in): | 20" |
|---|
| Length: (cm): | 50 cm |
|---|
| Pitch: | 3/8" |
|---|
| Bar Type: | PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar |
|---|
| Chain / Cutter Type: | 48S / Semi-Chisel or 48F / Full-Chisel |
|---|
| Bar Mount Type: | CB |
|---|
| Gauge: | .058" |
|---|
| Drive Link Count: | 72 |
|---|
| Teeth: | 11 Tooth sprocket nose |
|---|
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
|---|
| Fits: | Alpina 760 and P70 model chainsaws. |
|---|
| Fits: | Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS, |
|---|
| PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910, |
|---|
| PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws. |
|---|
| Fits: | Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP |
|---|
| LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 |
|---|
| XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, |
|---|
| 465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP |
|---|
| AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L |
|---|
| 66, L 70 and L 77 model chainsaws. |
|---|
| Fits: | Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071, |
|---|
| 2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS |
|---|
| 2186, CS 2186 WH and CS 2188 model chainsaws. |
|---|
| Product Line Notes: | Note: Please check your saw carefully prior to ordering, some of the above saw |
|---|
| models were also released fitted with a .404" pitch chain. |
|---|
| Fits: | Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL model |
|---|
| chainsaws. |
|---|
| Product Line Notes: | Note: Please check your saw carefully prior to ordering, some of these saw models |
|---|
| were also released fitted with a .404" pitch chain. |
|---|
| Fits: | Opem K2 Super model chainsaws. |
|---|
| Fits: | Partner 550, 650, 1655, 2055, 7000, P-55, P65, P70, P85, P-100, R-11, R-12, R-14, |
|---|
| R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416, R-420, |
|---|
| R-421, R-435, R-440, S-50, S-55 and S-65 model chainsaws. |
|---|
| Fits: | Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. |
|---|
| Product Line Notes: | Note: Please check your saw carefully prior to ordering, some of these saw models |
|---|
| were also released fitted with a .404" pitch chain. |
|---|
| Fits: | Shindaiwa 550, 575, 577, 680, 695, 757, 757C and 757W model chainsaws. |
|---|
| Fits: | Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | Replaces our part number OMK208RNDD009 |
|---|
| Please Note: | Use with our semi-chisel chain loop part number GAF48S072DL or our full-chisel |
|---|
| chain loop part number GAF48F072DL. |
|---|
| Other PROKUT bar options to fit the above models Include: - For a PROKUT PLATINUM |
|---|
| SUGIHARA solid professional replaceable sprocket nose guide bar option (which is |
|---|
| made In Japan) use our part number GAFCB2048RSP. For a standard PROKUT solid |
|---|
| professional replaceable sprocket nose guide bar option use our part number |
|---|
| GAFCB2048RS. For a PROKUT professional laminated bar / multi-rivet sprocket nose |
|---|
| guide bar use our part number GAFCB2048PL, For a PROKUT bar and chain combo |
|---|
| containing a Laminated bar/Multi-rivet sprocket nose guide bar (GAFCB2048PL) and a |
|---|
| full-chisel chain loop (GAF48F072DL) use our part number GAF109118. |
|---|
| Brand: | PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories, |
|---|
| Product Line: | Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar, |
|---|
| sprocket nose guide bar, |
|---|
