Specifications

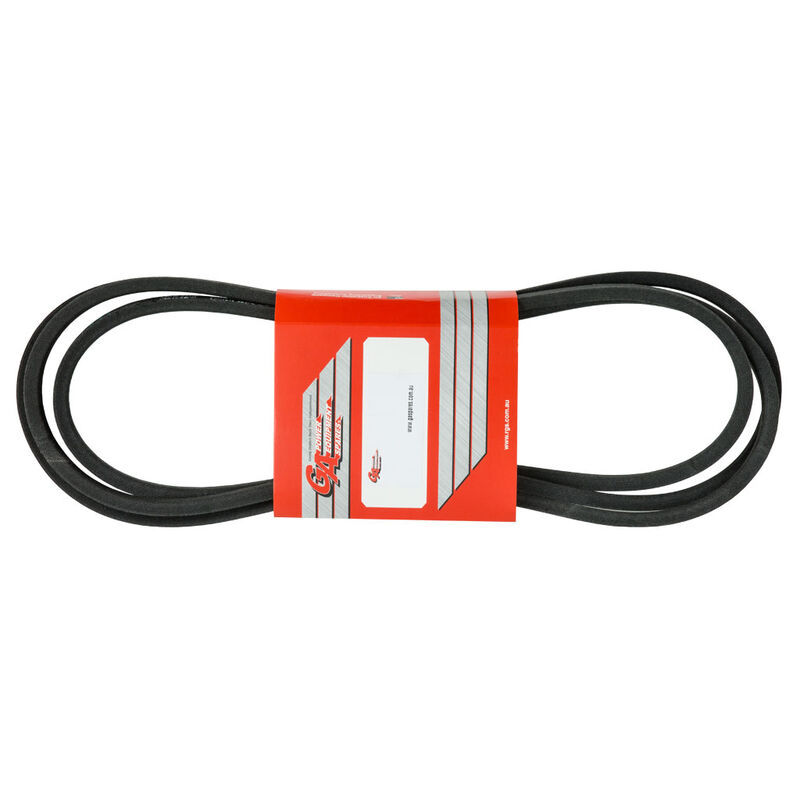

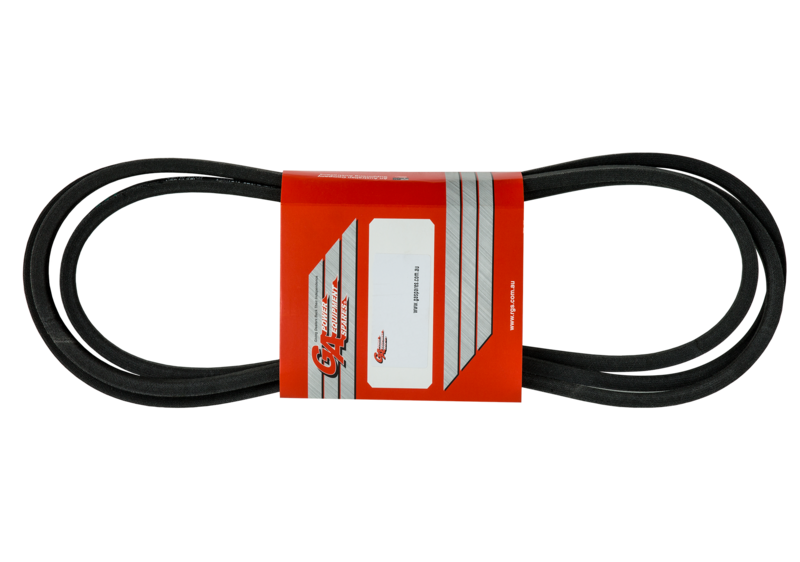

| Description: | Non-Genuine Cub Cadet, Masport, Rover 48" Cut, Cutter Deck Belt |
|---|
| Replaces OEM: | Cub Cadet: 490-501-C093, 754-05012, 754-05012A, 954-05012, 954-05012A, |
|---|
| Masport: 490-501-C093, 754-05012, 754-05012A, 954-05012, 954-05012A, |
|---|
| Rover: 490-501-C093, 754-05012, 754-05012A, 954-05012, 954-05012A, |
|---|
| Deck (inches) | 48" Cut. |
|---|
| Deck (mm) | 1220 mm Cut. |
|---|
| Deck (cm) | 122 cm Cut. |
|---|
| Length Outside Circumference: | 136.692" |
|---|
| Length Outside Circumference: | 3472 mm |
|---|
| Width: (inches) | 1/2" (Top of belt). |
|---|
| Width: (mm) | 12.70 mm (Top of belt). |
|---|
| Height: (inches) | 0.393". |
|---|
| Height: (mm) | 10 mm. |
|---|
| Fits: | 48" (1220 mm) cut Cub Cadet Pro Z 100 EFI 148-S [100 48, EFI 148-S, KH 148S , 148S] |
|---|
| (model 53AWEFJF330 years 2016 to 2022), Z-Force LX 48 [LX48 KH FAB] (model |
|---|
| 17ASDAUB330 years 2017 to 2020) and Z-Force SX48 [SX 48, SX 48 KH FAB, SX 48 KW |
|---|
| FAB, SX-48] (models 17AIDGJB330 year 2018, 17ASDGJB330 years 2018 to 2020 |
|---|
| and47AIDGJB330 years 2021 to 2022) zero turn radius (ZTR) ride-on models as the |
|---|
| cutter deck belt. |
|---|
| Belt Position & Size: | Cutter Deck Belt (1/2" Wide x 136.692" O.C). |
|---|
| Qty required per unit: | 1 required for 48" cut. |
|---|
| Fits: | 48" (1220 mm) cut Masport ZVT 4800 [ZVT4800, 24V/48SD] (model 552905 years 2015 to |
|---|
| 2020) zero turn radius (ZTR) ride-on models as the cutter deck belt. |
|---|
| Belt Position & Size: | Cutter Deck Belt (1/2" Wide x 136.692" O.C). |
|---|
| Qty required per unit: | 1 required for 48" cut. |
|---|
| Fits: | 48" (1220 mm) cut Rover Z-Force LZ48 [LZ 48] (models 17AFDAGV333 years 2014 and |
|---|
| 17ASDAGV333 year 2014) zero turn radius (ZTR) ride-on models as the cutter deck |
|---|
| belt. |
|---|
| Belt Position & Size: | Cutter Deck Belt (1/2" Wide x 136.692" O.C). |
|---|
| Qty required per unit: | 1 required for 48" cut. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Footnote: | Our premium quality belts are manufactured with high-strength Aramid fibre cords |
|---|
| for heavy duty applications and severe duty cycles. These belts have a drier cover |
|---|
| fabric that is designed to increase flexibility and withstand severe clutching |
|---|
| action, bending or twisting, heavy loads and backside idler applications. Oil and |
|---|
| heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar. |
|---|
| Brand: | Cub Cadet Non-Genuine, Masport Non-Genuine, Rover Non-Genuine, |
|---|
| Product Line: | Belt - Cutter Deck, Cutter Deck Belt, Deck Belt, V-Belt, |
|---|
Masport / Rover / Mtd 48" Cutter Deck Belt
