Specifications
| Description: | Electric PTO Clutch |
|---|
| Replaces OEM: | MTD: 717-1708, 917-1708 |
|---|
| Cub Cadet: 717-1708 |
|---|
| Snapper: 7-4022 |
|---|
| Warner: 5215-129 |
|---|
| Inside Diameter: (inches) | 1 |
|---|
| Inside Diameter: (mm) | 25.4 |
|---|
| Height: (inches) | 3 1/2 |
|---|
| Height: (mm) | 89 |
|---|
| Pulley Diameter : (inches) | 5 1/4 |
|---|
| Pulley Diameter : (mm) | 133 |
|---|
| Fits: | Cub Cadet 42" cut LT1018 13AL11CG710 Hydro 18hp (2004) models, 1517 13A-231G630 Hydro 17hp (2002) models, 1527 13A-241G100 Hydro 17hp (2003) models. |
|---|
| Fits: | MTD Yardman 42" cut 13AD624G643 Revolution 17.5hp (2001), 13AT604G371 Autodrive 18hp (2000) models. MTD Yardman 46" cut 13AU604H671 Autodrive 20hp (2000) models. |
|---|
| Fits: | Selected Snapper Ride-ons. |
|---|
| Features: | Made by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt) Operates in a counterclockwise direction. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
|---|
| Over the counter sales of clutches as spare parts should be discouraged. |
|---|
| WHY? - The main causes of failures to electric clutches are due to faults with the |
|---|
| battery and/or charging circuits not providing the correct current to operate the |
|---|
| clutch adequately leading to premature failure. Electric PTO clutches are a |
|---|
| specialist component that should only be fitted by a servicing dealer with the |
|---|
| correct equipment to test both the charging circuits and battery condition. It is |
|---|
| therefore the responsibility of the servicing dealer to test these items prior to |
|---|
| installing a new clutch. Failure to do so will void warranty. Warranty covers |
|---|
| normal use and does not cover damage or defect which results from alteration, |
|---|
| accident, neglect, or improper clutch selection, installation, operation, or |
|---|
| maintenance. Warranty covers faulty manufacture and/or workmanship. |
|---|
| GA Spares stocks electric clutches manufactured by an OEM supplier. |
|---|
| Brand: | MTD - Non Genuine, Cub Cadet - Non Genuine, Snapper - Non Genuine, Warner |
|---|
| Product Line: | Clutch, electric, |
|---|

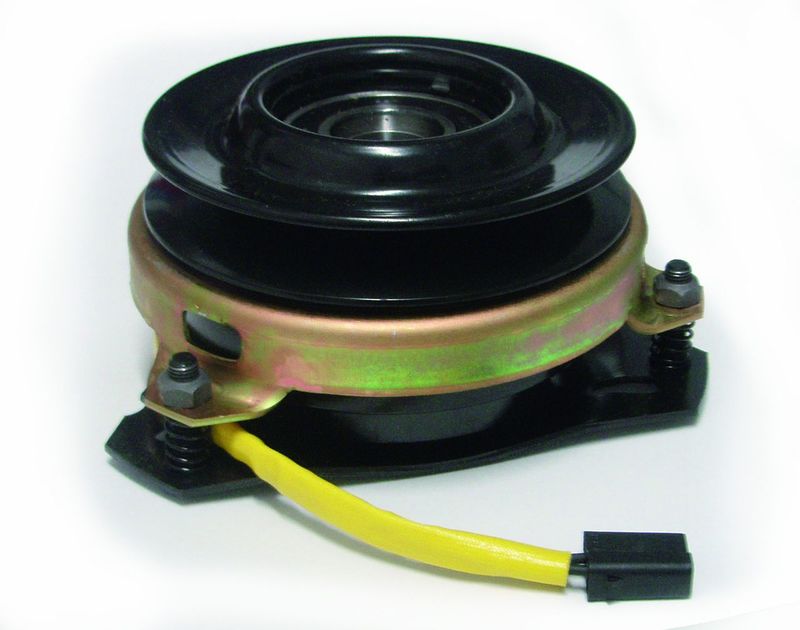

Electric Pto Clutch 1" Id X 5-1/4" Pulley
