Specifications

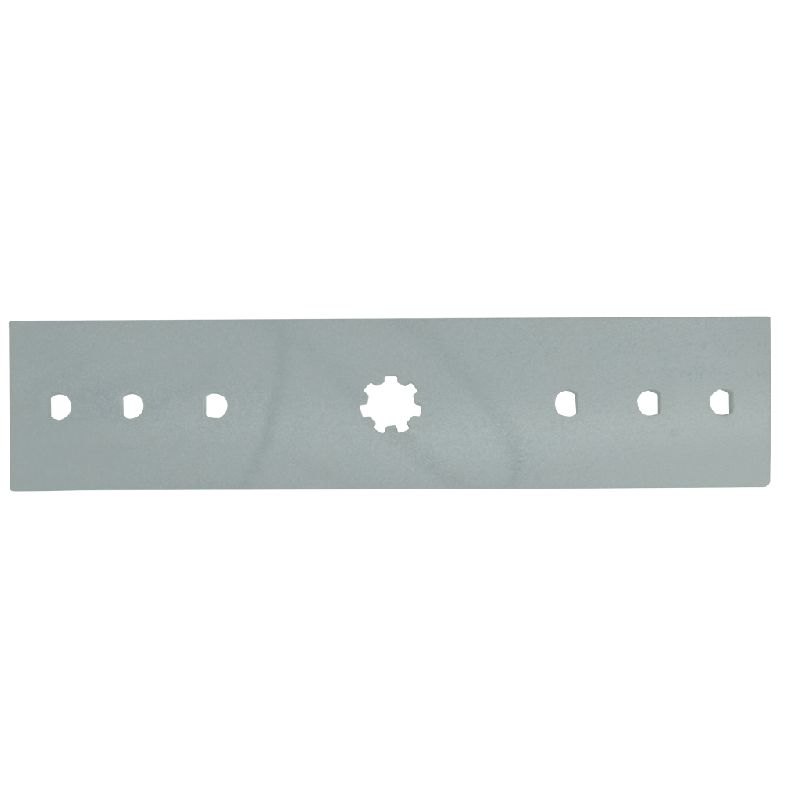

| Description: | Non-Genuine John Deere Selected 38", 42” And 48” Cut, 7 Point Star Swing Back |
|---|
| Blade Conversion Carrier Bar |
|---|
| Centre Hole Type: | 7-Point Star |
|---|
| Fits: | 38" (965 mm) cut John Deere selected ride-on lawn mower models including but not |
|---|
| limited to X300 model zero turn radius (ZTR) ride-on models. |
|---|
| Qty required per unit: | 2 Bars required for 38" cut |
|---|
| Fits: | 42" (1067 mm) cut John Deere selected models including but not limited to 102, 105, |
|---|
| 115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models and |
|---|
| Z225 EZtrak™ Residential zero turn radius (ZTR) ride-on models. |
|---|
| Qty required per unit: | 2 Bars required for 42" cut |
|---|
| Fits: | 48" (1220 mm) cut John Deere selected models including but not limited to 145, |
|---|
| 155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak™ Residential |
|---|
| zero turn radius (ZTR) ride-on models. |
|---|
| Qty required per unit: | 3 Bars required for 48" cut |
|---|
| Features: | • Converts units which came standard off the production line with bar blades and |
|---|
| allows them to be fitted with swing back blades. Please order the swing back blades |
|---|
| separately from the options listed below. |
|---|
| • Inner "D" holes: 5" (127 mm) |
|---|
| • Middle "D" holes: 7.283" (185 mm) |
|---|
| • Outside "D" holes: 9.370" (238 mm) |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | All blade carriers are sold as singles, order the quantity required to make up a |
|---|
| set. |
|---|
| Please Note: | For 38” & 42" cut use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty |
|---|
| bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty. |
|---|
| Or |
|---|
| For 48” cut use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt |
|---|
| sets, or for a blade and bolt combo pack option use our BRC5543 x 3 qty. |
|---|
| Brand: | John Deere - Non Genuine, |
|---|
| Product Line: | Blade carrier bar - swing back, swing back blade conversion carrier bar, |
|---|
Non-genuine John Deere 38" 42" & 48" Cut Blade Bar Adaptor
