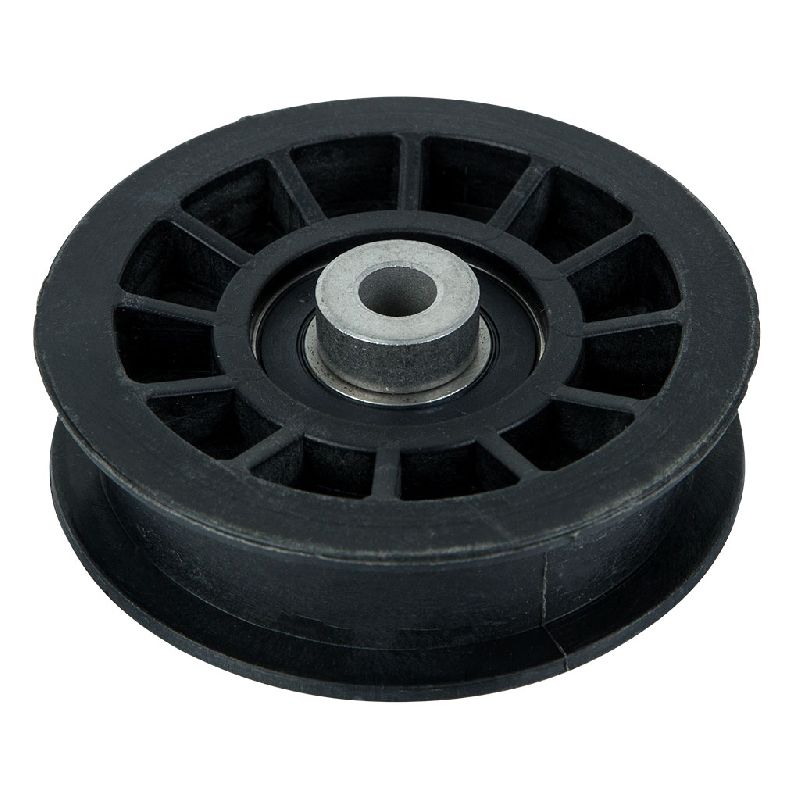

| Description: | Non-Genuine Dixon, Husqvarna, HUSTLER, Jonsered, McCulloch, Redmax Selected Deck & Transmission Flat Idler Pulley - Plastic |
|---|
| Replaces OEM: | Dixon: 539 11 03-11, 5391103-11, 539 110311, 539110311, |
|---|
| Husqvarna: 539 11 03-11, 5391103-11, 539 110311, 539110311, |
|---|
| HUSTLER: 607163, |
|---|
| Jonsered: 539 11 03-11, 5391103-11, 539 110311, 539110311, |
|---|
| McCulloch: 539 11 03-11, 5391103-11, 539 110311, 539110311, |
|---|
| Redmax: 539 11 03-11, 5391103-11, 539 110311, 539110311, |
|---|
| Deck (cm) | Selected 76.2 cm, 86.4 cm, 106.7 cm, 116.8 cm, 122 cm, 132 cm, 137.2 m, 152.4 cm Cut. |
|---|
| Deck (inches) | 30", 34", 42", 46", 48", 52", 54", 60" Cut. |
|---|
| Deck (mm) | Selected 762 mm, 864 mm, 1067 mm, 1168 mm, 1220 mm, 1320 mm, 1372 mm, 1524 mm Cut. |
|---|
| Height: (inches) | 0.990" |
|---|
| Height: (mm) | 25.15 mm |
|---|
| Inside Diameter: (inches) | 0.3779" |
|---|
| Inside Diameter: (mm) | 9.60 mm |
|---|
| Hole Size: (inches) | 0.3779" |
|---|
| Hole Size: (mm) | 9.60 mm |
|---|
| Outside Diameter: (inches) | 3.488" |
|---|
| Outside Diameter: (mm) | 88.62 mm |
|---|
| Pulley Diameter: (inches) | 3.488" |
|---|
| Pulley Diameter: (mm) | 88.62" |
|---|
| Pulley Dimension A: (inches) | 3.488" |
|---|
| Pulley Dimension A: (mm) | 88.62 mm |
|---|
| Pulley Dimension B: (inches) | 2.995" |
|---|
| Pulley Dimension B: (mm) | 76.08 mm |
|---|
| Pulley Dimension C: (inches) | 0.3779" |
|---|
| Pulley Dimension C: (mm) | 9.60 mm |
|---|
| Pulley Dimension D: (inches) | 0.736" |
|---|
| Pulley Dimension D: (mm) | 18.70 mm |
|---|
| Pulley Dimension T: (inches) | 0.124" |
|---|
| Pulley Dimension T: (mm) | 3.15 mm |
|---|
| Pulley Height : (inches) | 0.990" |
|---|
| Pulley Height : (mm) | 25.15 mm |
|---|
| Fits: | Dixon 42" cut SPEED ZTR42 SE (model 966657601-01 years 2011 to 2012), 48" cut RAM 48 ZT (model 966611601-01 years 2011 to 2012), 54" cut SPEED ZTR54 (model 966658201-01 years 2011 to 2012) zero turn radius (ZTR) ride-on models as a transmission flat idler pulley. |
|---|
| Fits: | Husqvarna 30" Cut RZ3019 [RZ 3019] (model 966582101 year 2010) zero turn radius (ZTR) ride-on models as a deck flat idler pulley and 42" cut EZ4217 [EZ 4217] (models 968999291 years 2006 to 2007 and 968999373 years 2006 to 2007), EZ4220 [EZ 4220] (model 968999692 years 2007 to 2009), RZ4218 [RZ 4218] (model 968999281 years 2005 to 2007), RZ4219 [RZ 4219] (model 968999511 years 2008 to 2016), RZ4220 [RZ 4220] (model 968999655 years 2007 to 2009), RZ4222TF [RZ 4222TF] (model 96703650100 years 2011 to 2015), |
|---|
| Z242E [Z 242E] (model 96766560100 years 2016 to 2017), Z242F [Z 242F] (models 967602801-00 years 2015 to 2017 and 967324401-00 years 2015 to 2017), 46" cut EZ4624 [EZ 4624] (model 968999657 years 2008 to 2009), RZ4621 [RZ 4621] (model 966582301-01 years 2010 to 2012), RZ4622T [RZ 4622T] (model 967176201 years 2012 to 2015), Z146 [Z 146] (model 97045860100 year 2021), Z246 [Z 246] (model 967665401-00 year 2017), 48" cut EZ24T BF [EZ 24T BF] (model 966659601-01 years 2011 to 2012), EZ4822 [EZ 4822] |
|---|
| (models 968999293 year 2006 and 968999374 year 2006), EZ4824TF [EZ 4824TF] (model 96665950200 years 2012 to 2015), RZ 4824TF [RZ4824TF] (model 96700380300 year 2012 to 2015), Z248F [Z 248F] (model 967336702-01 years 2015 to 2017), 52" cut MZ25 [MZ 25] (model 968999780 years 2088 to 2010), 54" cut RZ5424T [RZ 5424T] (model 967003702-00 years 2012 to 2015), Z254 [Z 254] (model 967324203-00 years 2016 to 2017), Z254F [Z 254F] (model 96768100200 years 2017 to 2019), Z254i [Z 254i] (model 967324202-00 years |
|---|
| 2015 to 2017) zero turn radius (ZTR) ride-on models as a transmission flat idler pulley. |
|---|
| Fits: | HUSTLER 34" cut Dash XD (model 940742EX years 2020 to 2021), 42" cut Dash XD (model 940759EX years 2020 to 2021), Raptor X (model 940494EX years 2020 to 2022) and Raptor XD (model 939819EX year 2020), 48" cut Dash XD (model 940767EX years years 2020 to 2021), Raptor XD (model 940510EX year 2020) and Raptor XDX (model 941492EX year 2020), 54" cut Raptor X (model 940502EX year 2020), Raptor XD (model 939751EX year 2020) and Raptor XDX (model 941500EX year 2020) and 60" cut Raptor XDX (model 941518EX year 2020 |
|---|
| ) zero turn radius (ZTR) ride-on models as a transmission flat idler pulley. |
|---|
| Fits: | Jonsered 42" cut Z42F (model 967327701-00 year 2015), 46" cut Z46R (model 967327801-00 year 2015), 48" cut Z48F (model 967327901-00 year 2015), 54" cut Z54R (model 967328001-00 year 2015) zero turn radius (ZTR) ride-on models as a transmission flat idler pulley. |
|---|
| Fits: | McCulloch 30" Cut ZM3016 BF (model 966564001 years 2010 to 2011), ZM3016 BF (966676301 year 2011) zero turn radius (ZTR) ride-on models as a deck idler pulley and 46" cut ZM4619 (models 966564101 year 2010 and 966660501-01 years 2011 to 2012) zero turn radius (ZTR) ride-on models as a transmission flat idler pulley. |
|---|
| Fits: | Redmax 42" cut RZT42 (model 967671901-00 years 2017 to 2022) zero turn radius (ZTR) ride-on models as a transmission flat idler pulley. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Brand: | Dixon Non-Genuine, Husqvarna Non-Genuine, HUSTLER Non-Genuine, Jonsered Non-Genuine, McCulloch Non-Genuine, Redmax Non-Genuine, |
|---|
| Product Line: | Deck Idler Pulley, Flat Idler Pulley, Idler Pulley - Deck, Idler Pulley - Transmission, Plastic Idler Pulley, Pulley Flat Idler, Pulley - Idler, Transmission Idler Pulley, |
|---|
