Specifications

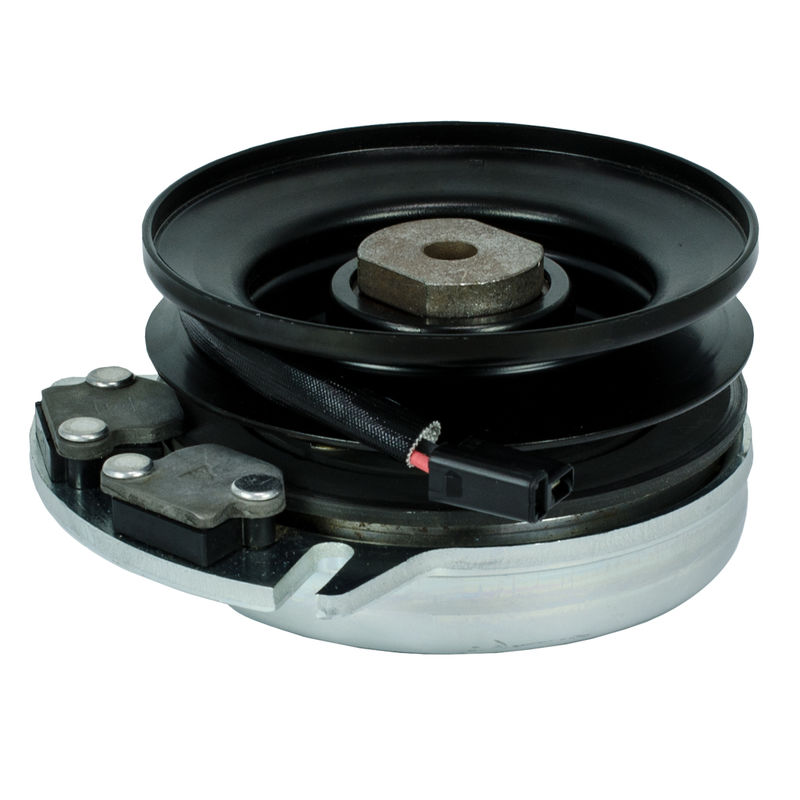

| Description: | Electric PTO Clutch assembly (manufactured by an OEM supplier). |
|---|
| Replaces OEM: | Warner: 5217-30 |
|---|
| Dixon: 16026, 539 120756 |
|---|
| Husqvarna: 539 12 07-56, 120756 |
|---|
| Height: (inches) | 2 5/8 |
|---|
| Height: (mm) | 66.67 |
|---|
| Pulley Diameter : (inches) | 5.345 |
|---|
| Pulley Diameter : (mm) | 135.76 |
|---|
| Fits: | Selected Dixon SPEEDSTER 36 (2007-2008) 16 hp 968999539 models. SPEEDSTER 42 (2007-2008) 16 hp 968999546 models. SPEEDSTER 44 (2007-2008) 20 hp Kohler engine 968999538 models and 22 hp Briggs & Stratton engine 968999547 models. SPEEDZTR 36 (2008-2009) 968999539 and 968999609 models. SPEEDZTR 42 (2008-2009) 968999689 and 968999713 models. SPEEDZTR 44 (2008-2009) 968999538, 968999547 and 9689996111 models. |
|---|
| Features: | Uses: 1/2" V - Belt ( A or 68 Series Belt) |
|---|
| Operates: In a counter clockwise direction. |
|---|
| Torque: 80ft lb |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
|---|
| Over the counter sales of clutches as spare parts should be discouraged. |
|---|
| WHY? - The main causes of failures to electric clutches are due to faults with the |
|---|
| battery and/or charging circuits not providing the correct current to operate the |
|---|
| clutch adequately leading to premature failure. Electric PTO clutches are a |
|---|
| specialist component that should only be fitted by a servicing dealer with the |
|---|
| correct equipment to test both the charging circuits and battery condition. It is |
|---|
| therefore the responsibility of the servicing dealer to test these items prior to |
|---|
| installing a new clutch. Failure to do so will void warranty. Warranty covers |
|---|
| normal use and does not cover damage or defect which results from alteration, |
|---|
| accident, neglect, or improper clutch selection, installation, operation, or |
|---|
| maintenance. Warranty covers faulty manufacture and/or workmanship. |
|---|
| GA Spares stocks electric clutches manufactured by an OEM supplier. |
|---|
| Brand: | Warner, Dixon Non Genuine, Husqvarna Non Genuine, |
|---|
| Product Line: | Electric Clutch, PTO Clutch, |
|---|
Electric Pto Clutch Assembly 2-5/8" Ht X 5.345" Pulley
