Specifications

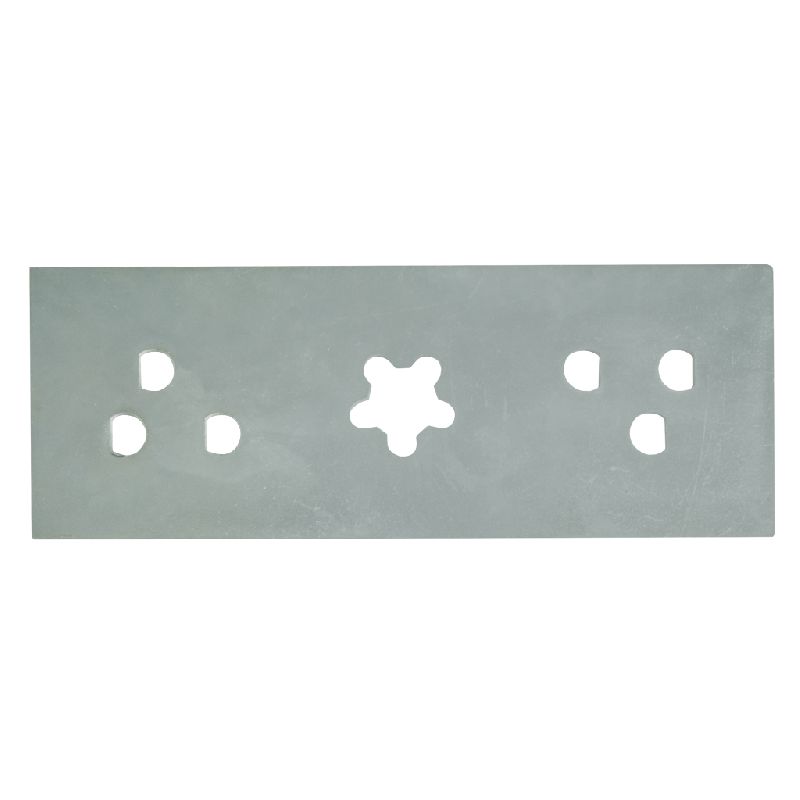

| Description: | Non-Genuine Husqvarna Selected 46", 48" And 50" Cut, 5 Point Star Hole, Swing Back |
|---|
| Blade Conversion Carrier Bar |
|---|
| Centre Hole Type: | 5 point star |
|---|
| Fits: | 46" (1168 mm) cut Husqvarna selected models including but not limited to YTH2546T |
|---|
| and YTH2546TD ride-on lawn mower models using a 5-point star centre hole blade. |
|---|
| Qty required per unit: | 3 bars required for 46" cut (Fits 3 blade deck models only.) |
|---|
| Fits: | 48" (1220 mm) cut Husqvarna selected models including but not limited to GTH2548XP, |
|---|
| YTH1848XP and YTH2148XP ride-on lawn mower models using a 5-point star centre hole |
|---|
| blade. |
|---|
| Qty required per unit: | 3 bars required for 48" cut |
|---|
| Fits: | 50" (1270 mm) cut Husqvarna selected front engine lawn tractor models. |
|---|
| Qty required per unit: | 3 bars required for 50" cut |
|---|
| Features: | • Converts units which came standard off the production line with bar blades and |
|---|
| allows them to be fitted with swing back blades. Please order the swing back blades |
|---|
| separately from the options listed below. |
|---|
| • Inner "D" holes: 3.307" (84 mm) |
|---|
| • Middle "D" holes: 4.645" (118 mm) |
|---|
| • Outside "D" holes: 5.196" (132 mm) |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | All blade carriers are sold as singles, order the quantity required to make up a |
|---|
| set. |
|---|
| Please Note: | Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets, or for a |
|---|
| blade and bolt combo pack option use our BRC5543 x 3 qty. Use the inside blade |
|---|
| mounting holes for 46” cut, (Fits 3 blade deck models only). Use the middle blade |
|---|
| mounting holes for 48” cut. Use the outer blade mounting holes for 50” cut. |
|---|
| Brand: | Husqvarna - Non Genuine, |
|---|
| Product Line: | Blade carrier bar - swing back, swing back blade conversion carrier bar, |
|---|
Husqvarna Composite Bar 5-point Star Hole Suits 46"/48" & 50"
