Genuine

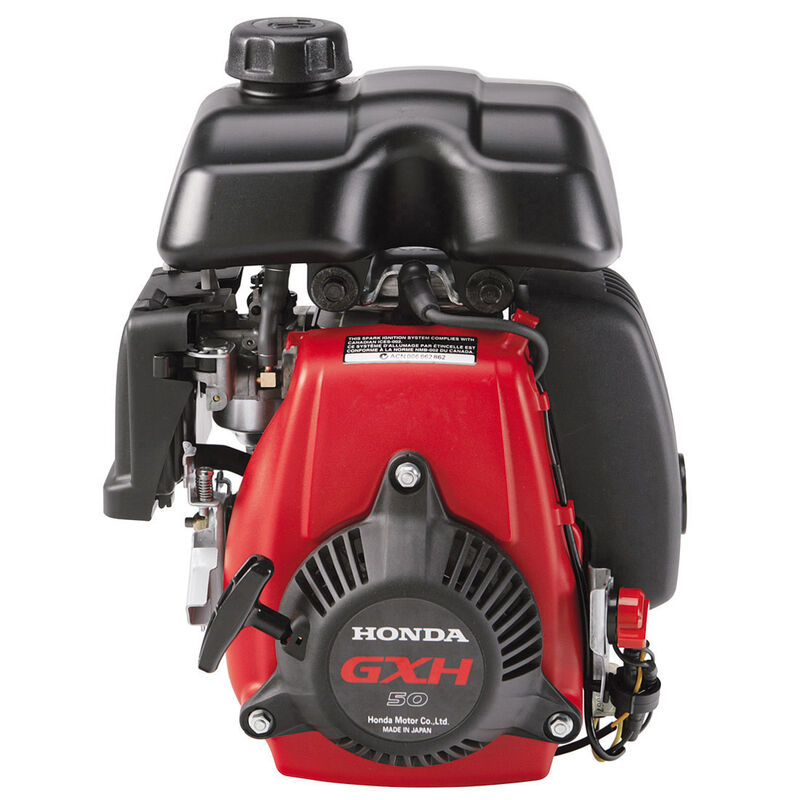

Honda GXH50 Petrol 4-Stroke Engine

Key Features

4-stroke engine
Horizontal engine
5/8 shaft
Oil Alert

Features

Engine	GXH50QXA
Cooling	Air-Cooled 4-Stroke OHV
RPM	7000
Displacement	49.4cc
Shaft	Horizontal
Shaft Type	5/8 - Straight
Cylinders	One
Cylinder Type	Aluminium
Weight Dry	5.5kg
Valve Type	OHV
Air Cleaner	Semi Dry
Oil Alert	Yes
Fuel Tank Capacity	0.77 Litres
Starter	Recoil
Bore x Stroke	41.8 X 36 mm
Net Power Output*	2.1 HP (1.6 kW) @ 7,000 rpm
Net Torque	2.0 lb-ft (2.7 Nm) @ 4,500 rpm
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Compression Ratio	8.0:1
Carburetor	Float Type
Ignition System	Transistorized magneto
Lubrication System	Forced splash
Governor System	Centrifugal Mechanical
Oil Capacity	.25L
Warranty	3 years
Dia	225 x 274 x 353 (mm) L x W x H
[image\|669]	A Class Above The precise camshaft design, OHV construction for increased efficiency and optimum power transfer, high compression ratio for better fuel efficiency all contribute to create a fuel efficient, high output operating engine.
[image\|673]	Smooth Performance Precision engineered components result in lower vibration. Ball bearing supported crankshaft for greater stability
[image\|670]	Honda Quiet Everyone knows how quiet the Honda GX engines are.Large capacity, multi-chamber exhaust system. Reduced mechanical noise due to light weight, noise-reducing materials. Forged steel crankshaft and rigid crankcase. Sophisticated air intake system
[image\|671]	Honda Reliability An oil alert to protect the engine against damage and only the highest quality materials for this specific finish.
[image\|672]	Honda Easy Starting Honda has installed a heavy duty recoil starter and an automatic mechanical de-compression system.

A professional small engine that comes standard with clutch shoes only. Designed to deliver on reliability, efficiency, and high performance on a regular basis. This engine is commonly used on construction/ industrial equipment, ag. equipment and water pumps.

This engine is no different to any other high-quality Honda powered engine with 4-stroke technology, super-quiet operation and easy to start. Fitted with a Honda oil alert shut off automatically stops the spark from the unit if the oil level is not sufficient enough to lubricate the engine without the possibility of damage. Comes as a horizontal shaft unit with a shaft size of 5/8" straight.

$760.00

SKU GXH50QXA

Brand Honda

AvailabilityAvailable
