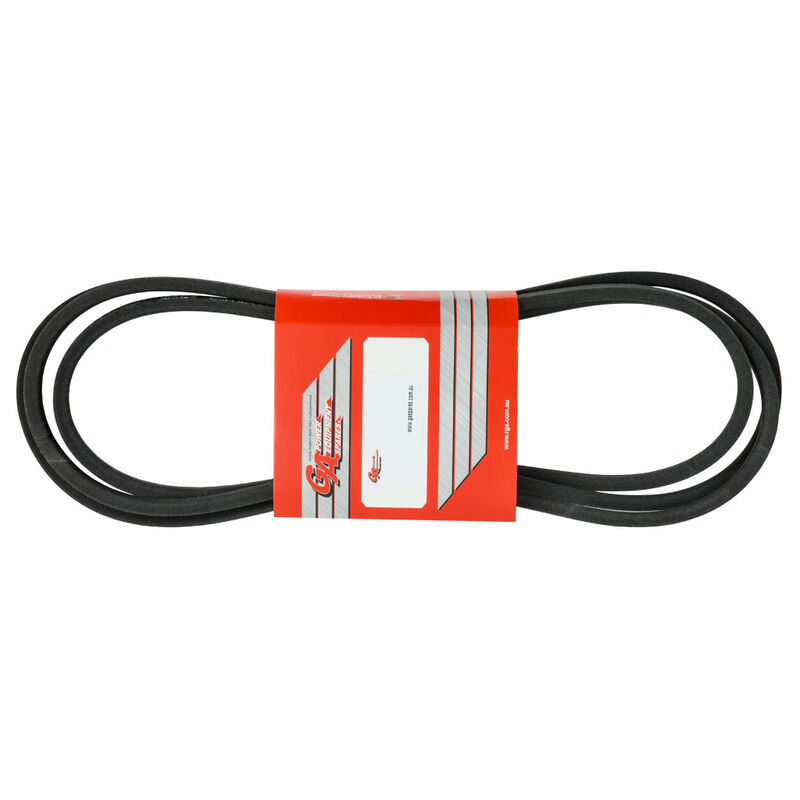

Specifications
| Description: | Non-Genuine Cub Cadet Pro Z 760 L & 760 S Series, 60" Cut Upper PTO To Cutter Deck |
|---|
| Belt |
|---|
| Replaces OEM: | Cub Cadet 754-05128, 954-05128 |
|---|
| Deck (inches) | 60" Cut |
|---|
| Deck (mm) | 1524 mm Cut |
|---|
| Deck (cm) | 152.4 cm Cut |
|---|
| Length Inside Circumference: ( | 102.07" I.C |
|---|
| Length Inside Circumference: ( | 2592.57 mm I.C |
|---|
| Length Outside Circumference: | 105.07" O.C |
|---|
| Length Outside Circumference: | 2669 mm O.C |
|---|
| Width: (inches) | 0.669" |
|---|
| Width: (mm) | 17 mm |
|---|
| Fits: | 60" (1524 mm) cut Cub Cadet Pro Z 700 L Series KW 760L [760L] (model 53AIHKTV330 |
|---|
| year 2017) and Pro Z 700 S Series 760S [KW 760-S] (model 53AIHKUV330 years 2018 to |
|---|
| 2020) zero turn radius (ZTR) models as the upper PTO To cutter deck belt. |
|---|
| Belt Position & Size: | Upper PTO To Cutter Deck Belt (0.669" Wide x 105.07" O.C) |
|---|
| Product Line Notes: | For the above models use in conjunction with our spindle to spindle drive, cutter |
|---|
| deck belt part number BEL7613 (which replaces OEM's 754-04319 & 954-04319). |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Footnote: | Our premium quality belts are manufactured with high-strength Aramid fibre cords |
|---|
| for heavy duty applications and severe duty cycles. These belts have a drier cover |
|---|
| fabric that is designed to increase flexibility and withstand severe clutching |
|---|
| action, bending or twisting, heavy loads and backside idler applications. Oil and |
|---|
| heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar. |
|---|
| Brand: | Cub Cadet Non-Genuine, |
|---|
| Product Line: | Belt, blade belt, cutter deck belt, cutter drive belt, deck belt, PTO to deck belt, |
|---|
| v-belt, |
|---|
Cub Cadet Pro Z 60" Upper Pto To Deck Belt
