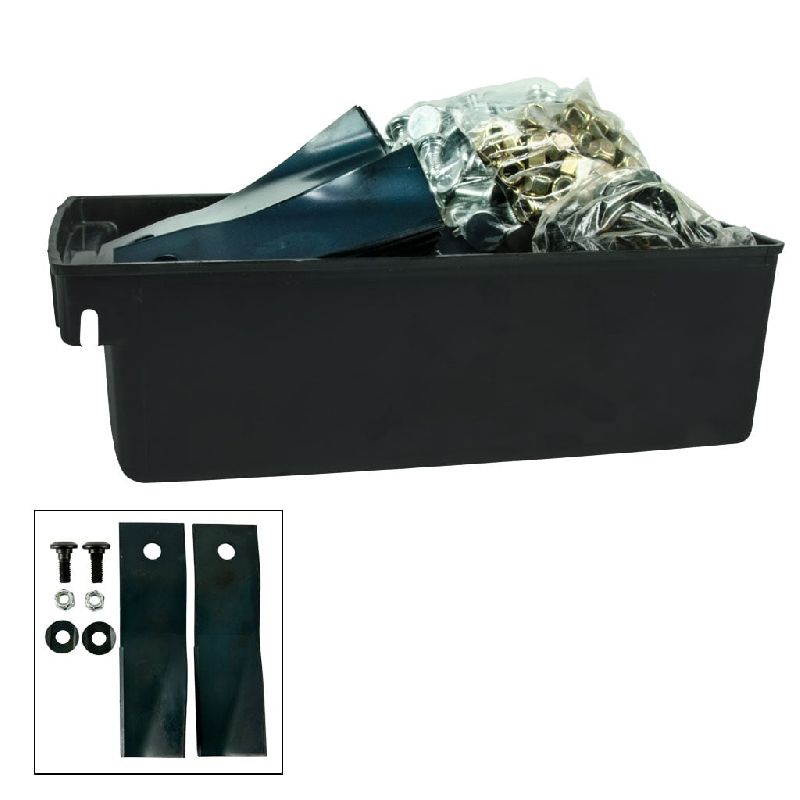

Cox 28" Blade & Bolt - Small Workshop Pack Of * 25 Sets *
Specifications
| Description: | Non-Genuine Cox, Cub Cadet, Husqvarna, Jetfast - SupaSwift, John Deere, Massey |
|---|---|
| Ferguson, MTD, Murray, TORO Blade And Bolt Sets - Small Workshop Pack of 25 Sets | |
| Replaces OEM: | Cox SMB150AHD |
| Cox SMB150A | |
| Jetfast - SupaSwift SB535184 | |
| Length: (in): | 5 15/16" |
| Length: (mm): | 150.81 mm |
| Width: (inches) | 1.968" |
| Width: (mm) | 50 mm |
| Thickness: (inches) | 0.118" |
| Thickness: (mm) | 3 mm |
| Hole Size: (inches) | 1/2" |
| Hole Size: (mm) | 12.7 mm |
| Fits: | 28” (711 mm) cut Cox selected models including but not limited to selected Orion, |
| Scout and Stockman ride-on lawn mower models. | |
| Product Line Notes: | For a display packed blade and bolt combo pack option order our part number BRC5543 |
| . | |
| Fits: | 42" (1067 mm) cut Cox selected models including but not limited to Cruiser CZ2142 |
| (model A12011H) zero turn radius ride-on models. | |
| Product Line Notes: | For a display packed blade and bolt combo pack option order our part number BRC5543 |
| . | |
| Fits: | 50" (1270 mm) cut *Cub Cadet selected models including but not limited to Z Force |
| Decks, RZT50 (model 17A12ACP709, 17 hp year 2007) ZTR, Cub Cadet (model 17AF9BK330 | |
| 20 hp Hydro year 2008) ride-on lawn mower models, i1050 (model 17AF9BKP330 20 hp | |
| year 2008) Z Turn ride-on lawn mower models when converting from 6-point star | |
| centre hole bar blades to swing back blades, (please refer to the product note | |
| below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH7882 x 3 qty stepped, 6-point star centre hole swing back | |
| blade conversion carrier bars. (Other options that you may already have in stock | |
| include using our BLS3653 x 3 qty swing back blade sets, BBN3722 x 3 qty bolt sets | |
| and BLH7882 x 3 qty stepped, 6-point star centre hole swing back blade conversion | |
| carrier bars. For a blade and bolt combo pack option order our part number BRC5543 | |
| x 3 qty. For a standard bar blade option use our BLR7572 x 3 qty, for a Copperhead | |
| Mulcher bar blade option use our BLR8172 x 3 qty). | |
| Fits: | 36" (914 mm) cut *Husqvarna selected ride-on lawn mower models when converting from |
| 5-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back | |
| blade conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre | |
| hole swing back blade conversion carrier bars. (Other options that you may already | |
| have in stock include using our BLS3653 x 2 qty swing back blade sets, BBN3722 x 2 | |
| qty bolt sets and BLH5788 x 2 qty flat, 5-point star centre hole swing back blade | |
| conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre hole | |
| swing back blade conversion carrier bars. For a blade and bolt combo pack option | |
| order our part number BRC5543 x 2 qty). | |
| Fits: | 38" (965 mm) cut *Husqvarna selected ride-on lawn mower models when converting from |
| 5-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back | |
| blade conversion carrier bars. (Other options that you may already have in stock | |
| include using our BLS3653 x 2 qty swing back blade sets, BBN3722 x 2 qty bolt sets | |
| and BLH5788 x 2 qty flat, 5-point star centre hole swing back blade conversion | |
| carrier bars or our BLH409 x 2 qty stepped, 5-point star centre hole swing back | |
| blade conversion carrier bars. For a blade and bolt combo pack option order our | |
| part number BRC5543 x 2 qty). | |
| Fits: | 42" (1067 mm) cut *Husqvarna selected ride-on lawn mower models when converting |
| from 5-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH5788 x 2 qty flat, 5-point star centre hole swing back | |
| blade conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre | |
| hole swing back blade conversion carrier bars. (Other options that you may already | |
| have in stock include using our BLS3653 x 2 qty swing back blade sets, BBN3722 x 2 | |
| qty bolt sets and BLH5788 x 2 qty flat, 5-point star centre hole swing back blade | |
| conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre hole | |
| swing back blade conversion carrier bars. For a blade and bolt combo pack option | |
| order our part number BRC5543 x 2 qty). | |
| Fits: | 46" (1168 mm) cut *Husqvarna selected ride-on lawn mower models (for 3 blade 46" |
| cut deck models only) when converting from 5-point star centre hole bar blades to | |
| swing back blades (please refer to the product note below for a full components | |
| required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH6477 x 3 qty flat, 5-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH6477 x 3 qty flat, 5-point | |
| star centre hole swing back blade conversion carrier bars. For a blade and bolt | |
| combo pack option order our part number BRC5543 x 3 qty. ***Please note for 46" cut | |
| 2 blade deck models only use our BLS3817 x 2 qty blade sets, BBN3722 x 2 qty bolt | |
| sets and BLH5788 x 2 qty flat, 5-point star centre hole conversion carrier bars.*** | |
| ) | |
| Fits: | 48" (1220 mm) cut *Husqvarna selected ride-on lawn mower models when converting |
| from 5-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH6477 x 3 qty flat, 5-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH6477 x 3 qty flat, 5-point | |
| star centre hole swing back blade conversion carrier bars. For a blade and bolt | |
| combo pack option order our part number BRC5543 x 3 qty). | |
| Fits: | 50" (1270 mm) cut *Husqvarna selected ride-on lawn mower models when converting |
| from 5-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH6477 x 3 qty flat, 5-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH6477 x 3 qty flat, 5-point | |
| star centre hole swing back blade conversion carrier bars. For a blade and bolt | |
| combo pack option order our part number BRC5543 x 3 qty). | |
| Fits: | 54" (1372 mm) cut *Husqvarna selected ride-on lawn mower models when converting |
| from 5-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH409 x 3 qty stepped, 5-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH409 x 3 qty stepped, | |
| 5-point star centre hole swing back blade conversion carrier bars. For a blade and | |
| bolt combo pack option order our part number BRC5543 x 3 qty). | |
| Fits: | 24” (610 mm) cut Jetfast SupaSwift Supa Bob 675WD side discharge slasher models. |
| Product Line Notes: | For a display packed blade and bolt combo pack option order our part number BRC5543 |
| . | |
| Fits: | 38" (965 mm) cut *John Deere selected ride-on lawn mower models including but not |
| limited to X300 model zero turn radius (ZTR) ride-on models when converting from | |
| 7-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH6899 x 2 qty flat, 7-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH6899 x 2 qty flat, 7-point | |
| star centre hole swing back blade conversion carrier bars. For a blade and bolt | |
| combo pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 42" (1067 mm) cut *John Deere selected models including but not limited to 102, |
| 105, 115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models | |
| and Z225 EZtrak Residential zero turn radius (ZTR) ride-on models when converting | |
| from 7-point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH6899 x 2 qty flat, 7-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH6899 x 2 qty flat, 7-point | |
| star centre hole swing back blade conversion carrier bars. For a blade and bolt | |
| combo pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 48" (1220 mm) cut *John Deere selected models including but not limited to 145, |
| 155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak Residential zero | |
| turn radius (ZTR) ride-on models when converting from 7-point star centre hole bar | |
| blades to swing back blades (please refer to the product note below for a full | |
| components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH6899 x 3 qty flat, 7-point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH6899 x 3 qty flat, 7-point | |
| star centre hole swing back blade conversion carrier bars. For a blade and bolt | |
| combo pack option order our part number BRC5543 x 3 qty). | |
| Fits: | 50" (127 cm) cut *Massey Ferguson selected models including but not limited to MF |
| 50-23 SD ride-on lawn mower models and MF 50-22 ZT zero turn radius (ZTR) ride-on | |
| models when converting from 6-point star centre hole bar blades to swing back | |
| blades (please refer to the product note below for a full components required list) | |
| . | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH7882 x 3 qty stepped, 6‑point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH7882 x 3 qty stepped, | |
| 6‑point star centre hole swing back blade conversion carrier bars. For a blade | |
| and bolt combo pack option order our part number BRC5543 x 3 qty. For a standard | |
| bar blade option use our BLR7572 x 3 qty, for a Copperhead Mulcher bar blade option | |
| use our BLR8172 x 3 qty). | |
| Fits: | 38" (965 mm) cut *MTD selected ride‑on lawn mower models when converting from |
| 6‑point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH5826 x 2 qty flat, 6‑point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH5826 x 2 qty flat, | |
| 6‑point star centre hole swing back blade conversion carrier bars. For a blade | |
| and bolt combo pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 42" (1067 mm) cut *MTD selected ride‑on lawn mower models when converting from |
| 6‑point star centre hole bar blades to swing back blades (please refer to the | |
| product note below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH5826 x 2 qty flat, 6‑point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH5826 x 2 qty flat, | |
| 6‑point star centre hole swing back blade conversion carrier bars. For a blade | |
| and bolt combo pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 50" (1270 mm) cut *MTD selected models including but not limited to MTD Yardman |
| deep deck 2004 models onwards and 13AP604P371 (23 hp, Autodrive year 2008) | |
| ride‑on lawn mower models when converting from 6‑point star centre hole bar | |
| blades to swing back blades (please refer to the product note below for a full | |
| components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH7882 x 3 qty stepped, 6‑point star centre hole swing back | |
| blade conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH7882 x 3 qty stepped, | |
| 6‑point star centre hole swing back blade conversion carrier bars. For a blade | |
| and bolt combo pack option order our part number BRC5543 x 3 qty. For a standard | |
| bar blade option use our BLR7572 x 3 qty, for a Copperhead Mulcher bar blade option | |
| use our BLR8172 x 3 qty). | |
| Fits: | 38" (965 mm) cut *Murray selected ride‑on lawn mower models when converting from |
| round centre hole bar blades to swing back blades (please refer to the product note | |
| below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH6480 x 2 qty flat, round centre hole swing back blade | |
| conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH6480 x 2 qty flat, round | |
| centre hole swing back blade conversion carrier bars. For a blade and bolt combo | |
| pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 40" (1016 mm) cut *Murray selected ride‑on lawn mower models when converting from |
| round centre hole bar blades to swing back blades (please refer to the product note | |
| below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH6480 x 2 qty flat, round centre hole swing back blade | |
| conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653W x 2 | |
| pairs swing back blades, BBN3722 x 2 qty bolt sets and BLH6480 x 2 qty flat, round | |
| centre hole swing back blade conversion carrier bars. For a blade and bolt combo | |
| pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 42" (1067 mm) cut *Murray selected ride‑on lawn mower models when converting from |
| round centre hole bar blades to swing back blades (please refer to the product note | |
| below for a full components required list). | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH6480 x 2 qty flat, round centre hole swing back blade | |
| conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH6480 x 2 qty flat, round | |
| centre hole swing back blade conversion carrier bars. For a blade and bolt combo | |
| pack option order our part number BRC5543 x 2 qty). | |
| Fits: | 42" (1067 mm) cut *Toro selected models including but not limited to RZT420H (years |
| 2008 to 2009), TimeCutter Z420 (year 2005), Z4200 (years 2007 to 2010), Z4202 | |
| (years 2009 to 2010), Z530 (years 2006 to 2007 models) zero turn radius (ZTR) | |
| ride‑on models when converting from round centre hole bar blades to swing back | |
| blades (please refer to the product note below for a full components required list) | |
| . | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 2 pair qty in |
| conjunction with our BLH7863 x 2 qty flat, round centre hole swing back blade | |
| conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 2 qty | |
| swing back blade sets, BBN3722 x 2 qty bolt sets and BLH7863 x 2 qty flat, round | |
| centre hole swing back blade conversion carrier bars. For a blade and bolt combo | |
| pack option order our part number BRC5543 x 2 qty. For a standard bar blade option | |
| use our BLR7544 x 2 qty, for a Copperhead Mulcher bar blade option use our BLR8202 | |
| x 2 qty). | |
| Fits: | 50" (1270 mm) cut *Toro selected models including but not limited to TimeCutter Z |
| models including Z5000, Z5020, Z5030, Z5035, Z5040 and Z5060 zero turn radius (ZTR) | |
| ride‑on models when converting from round centre hole bar blades to swing back | |
| blades (please refer to the product note below for a full components required list) | |
| . | |
| Product Line Notes: | *Use the blades and bolts included in this workshop pack x 3 pair qty in |
| conjunction with our BLH7861 x 3 qty flat, round centre hole swing back blade | |
| conversion carrier bars. | |
| (Other options that you may already have in stock include using our BLS3653 x 3 qty | |
| swing back blade sets, BBN3722 x 3 qty bolt sets and BLH7861 x 3 qty flat, round | |
| centre hole swing back blade conversion carrier bars. For a blade and bolt combo | |
| pack option order our part number BRC5543 x 3 qty. For a standard bar blade option | |
| use our BLR7599 x 3 qty, for a Copperhead Mulcher bar blade option use our BLR8204 | |
| x 3 qty). | |
| Australian Made: | Yes |
| Features: | Heavy duty 3 mm thick stepped and high fluted blades, right hand cut, |
| Includes matching bolt sets, | |
| Supplied in bulk for workshop use in a reusable plastic parts box, | |
| Suits OEM production line machines, | |
| Also suitable for use with nine GA swing back blade conversion carrier bars, | |
| Kit consists of: | BLS3653WC x 25 Pairs of blades, |
| BBN3722W x 25 Pairs of bolt set components, | |
| BSS6844 x 1 Plastic stock box, | |
| Standard Pack Quantity: | 1 |
| Footnote: | All length measurements are from the centre of bolt hole to end of blade. |
| Brand: | Cox Non-Genuine, Cub Cadet Non-Genuine, Husqvarna Non-Genuine, Jetfast - SupaSwift |
| Non-Genuine, John Deere Non-Genuine, Massey Ferguson Non-Genuine, | |
| Product Line: | Blade & bolt sets workshop pack, blade and bolt sets workshop pack, swing back |
| blades and bolt sets - workshop packs, workshop packs - blades & bolts, workshop | |
| pack - blades and bolts, |
Cox 28" Blade & Bolt - Small Workshop Pack Of * 25 Sets *
