Specifications
| Description: | Non-Genuine Cox Clutch Drive Cone - Late Style With Three Outer Mounting Holes |
|---|
| Replaces OEM: | Cox CC2095NG, CC2095GNE, CC3095J, CC3095L, |
|---|
| Inside Diameter: (inches) | 1.18" |
|---|
| Inside Diameter: (mm) | 30 mm |
|---|
| Outside Diameter: (inches) | 3.74" |
|---|
| Outside Diameter: (mm) | 95 mm |
|---|
| Thickness: (inches) | 1" |
|---|
| Thickness: (mm) | 25.4 mm |
|---|
| Fits: | Cox selected models including but not limited to New Generation, New ERA, C1332 |
|---|
| [13/32, 13-32](13 hp models 9505G and 9506C years 2005 to 2007) ride-on lawn mower |
|---|
| models. |
|---|
| Features: | Later style with 3 outer holes for locating screws. |
|---|
| Standard Pack Quantity: | 1 |
|---|
| Note: | For early type clutch cone options, with one pin hole (note: not suited to the |
|---|
| models listed above), use our part numbers CHD5335 (non-genuine) or CHD6954 |
|---|
| (genuine). |
|---|
| Please Note: | When installing a new Cox drive cone please insure the drive plate surfaces are in |
|---|
| good condition with no grooves. It is necessary to deglaze the drive plate surface |
|---|
| so the new cone will not slip generating excessive heat & damaging the drive cone. |
|---|
| As the new cones can no longer contain asbestos over heating will cause premature |
|---|
| failure. A quick way to deglaze the drive plates is to use a 4" disc sander with |
|---|
| medium grit paper. This can also be done quickly at each service to reduce drive |
|---|
| failure. It is only necessary to take the shine off the surface to give the cone a |
|---|
| surface to grip to. Any grooves will need to be machined in a lathe. |
|---|
| Brand: | Cox Non-Genuine, |
|---|
| Product Line: | Clutch cone, cone - clutch, drive cone - clutch, |
|---|

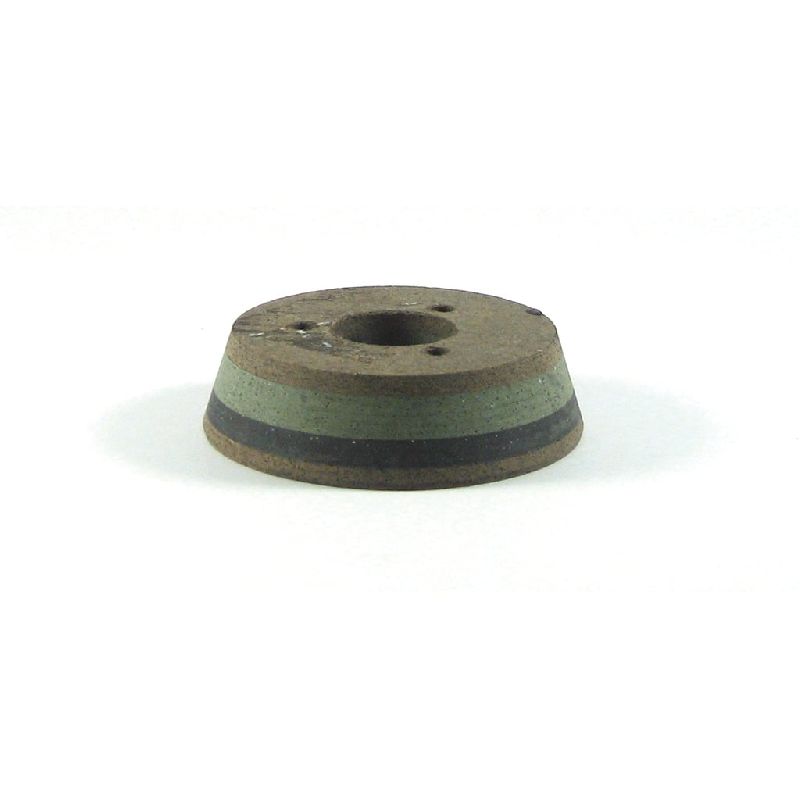

Non-genuine Cox Clutch Drive Cone - Late Style With Three Outer Mounting Holes
